MAG-CP-125-09-03-SD - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 124.62 mm
      (Equiv. 4.906 in.)
    • Thickness (B) 8.73 mm
      (Equiv. 0.344 in.)
    • Thread Size 3/8-16 UNC
    • Thread Length 57.15 mm
    • Holding Value 86.18 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM428
      • IM-428
      View full details

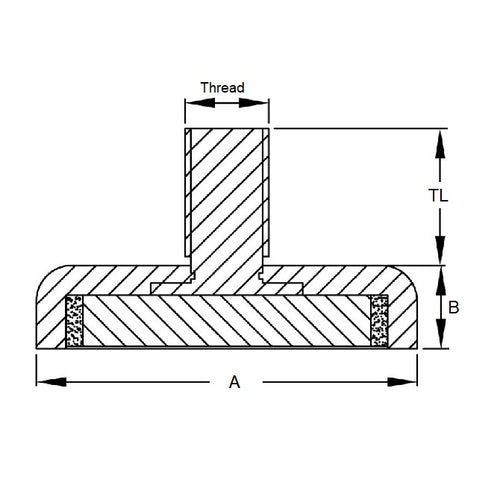

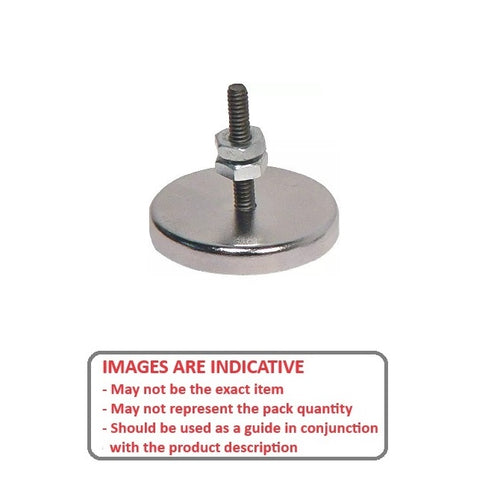

      MAG-CP-125-09-03-SDDiagramMAG-CP-125-09-03-SDImage
