MAG-CP-124-13-44-H - Datasheet
MBA
Category Information

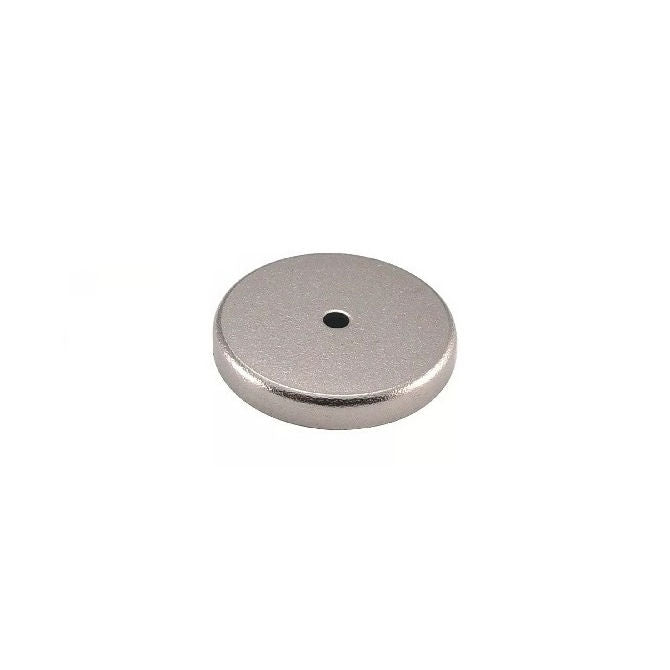

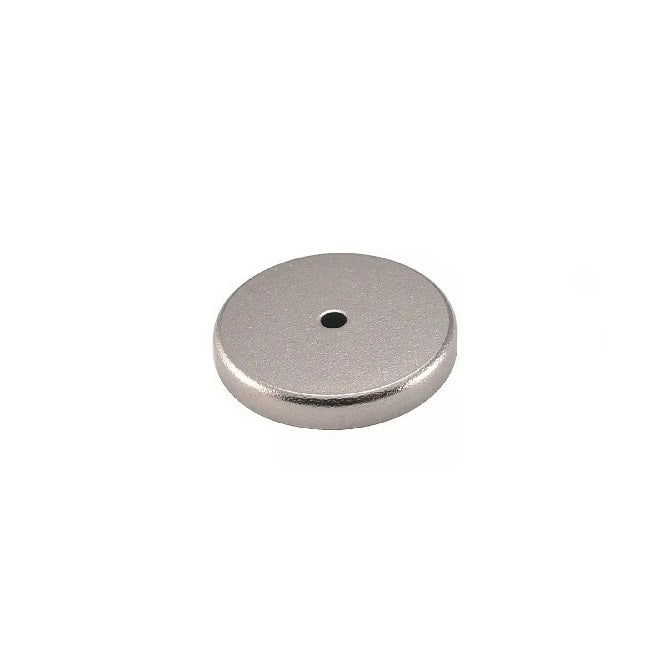

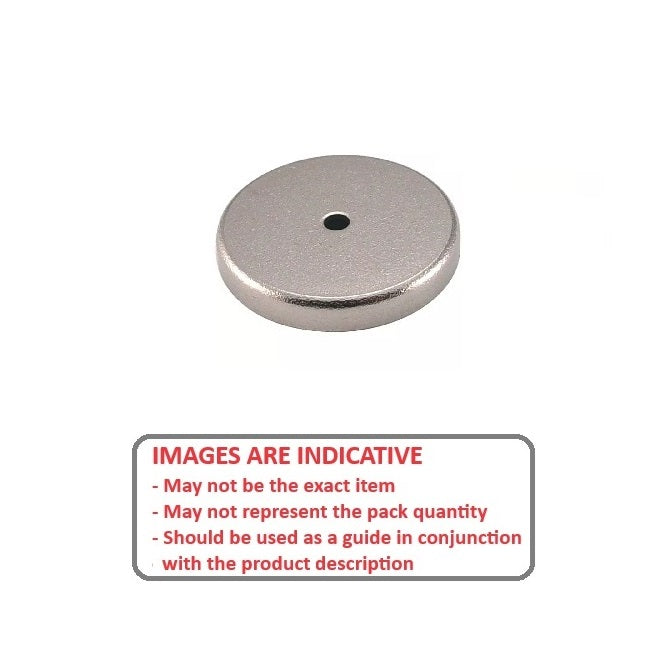

Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

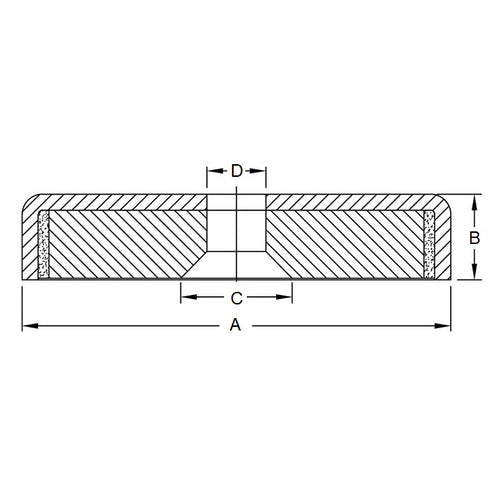

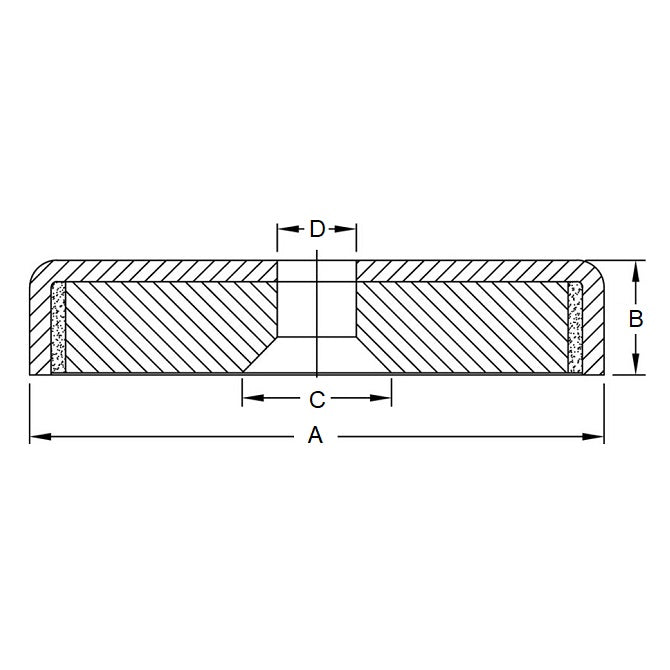

- Diameter (A)
:
124.46
mm
(Equiv. 4.9 in.) - Thickness (B)
12.70
mm
(Equiv. 0.5 in.) - Hole Recess (C)
44.45
mm
(Equiv. 1.75 in.) - Hole Top Diameter (D) 12.7 mm
- Holding Value 86 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM329
- IM-329
