GR-V6-38-1219-25-C - Datasheet
MBA
Category Information

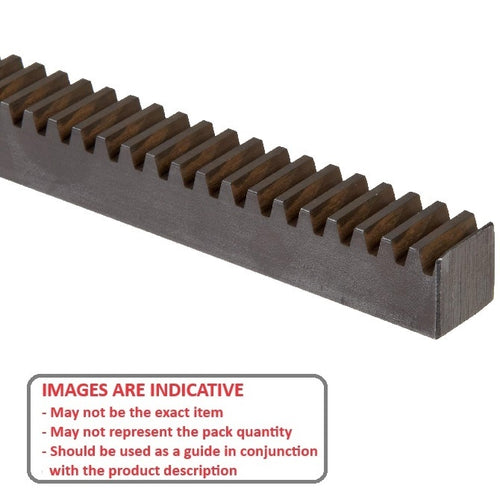

Gears - Rack - Imperial - 6DP Steel6DP Steel Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 6 DP. Approx 13.3mm between teeth.
Product Data
- Length (L)
:
1219.2
mm
(Equiv. 48 in.) - Face Width (fw)
38.1
mm
(Equiv. 1.5 in.) - Height (h)
25.400
mm
(Equiv. 1 in.) - Pitch Type 6DP - 14.5 PA
- Pitch Height (ph) 21.158 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Rectangular
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L520-4
- L5204
- GE-0600
- GE0600
