GR-V12-19-1219-19-C - Datasheet
MBA
Category Information

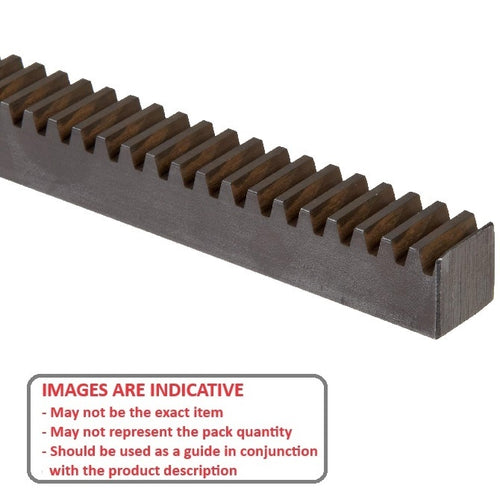

Gears - Rack - Imperial - 12DP Steel12DP Steel Imperial Rack Gears. 14.5 Degree Pressure Angle. Unhardened Steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 12 DP. Approx 6.65mm between teeth.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
1219.2
mm
(Equiv. 48 in.) - Face Width (fw)
19.05
mm
(Equiv. 0.75 in.) - Height (h)
19.050
mm
(Equiv. 0.75 in.) - Pitch Type 12DP - 14.5 PA
- Pitch Height (ph) 16.942 mm
- Pressure Angle 14.5 °
- Mounting Holes None
- Shape Square
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BOSTON L515-4
- L5154
- GE1202
- GE-1202
