B-080G-0120-0500-NFB - Datasheet

MBA

Category Information

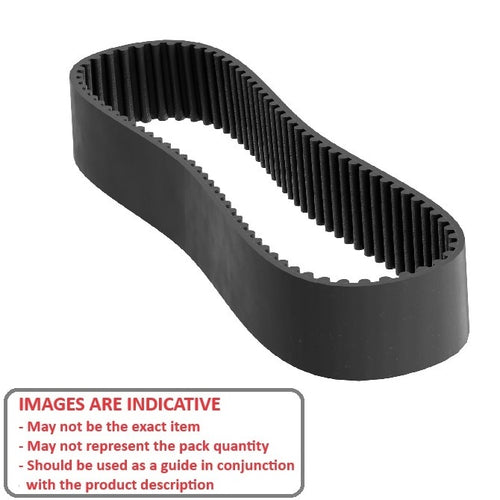

Belts - Timing 8.000mm Pitch - GT - 50mm Wide - Single Sided

Single Sided 50mm Wide GT Timing 8.000mm Pitch Belts. GT2 and GT3 Series Metric Timing Belts

  • Timing belts combined with timing pulleys, provide power transmission without slippage.
  • Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
  • GT3 replaces GT2 as GT2 stock is depleted

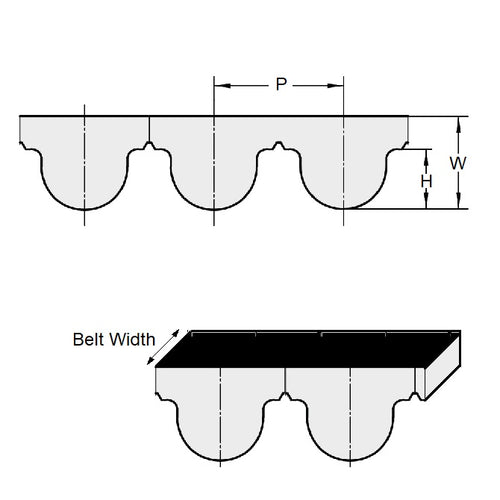

  • Pitch (P) - 8mm

Product Data

  • Number of Teeth : 120
  • Length 960 mm
    (Equiv. 37.795 in.)
  • Width 50.0 mm
    (Equiv. 1.969 in.)
  • Reinforcement Fibreglass (GT2) or Carbon Fibre (GT3)
  • Appearance Black
  • Breaking Strength 15750 N
  • Min Temperature (C) -18 Deg C
  • Max Temperature (C) 66 Deg C
  • Material Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 960-8MGT-50
  • Gates 960-8P-50
  • 9608P50
  • 9608MGT50
