B-XL-0120-0064-NFB - Datasheet
MBA
Category Information

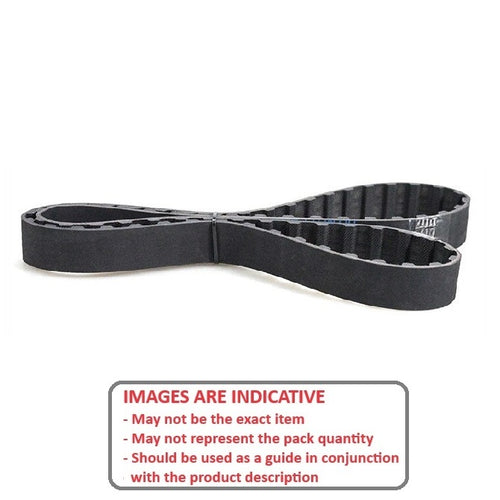

Belts - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide - Single SidedSingle Sided 6.4mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

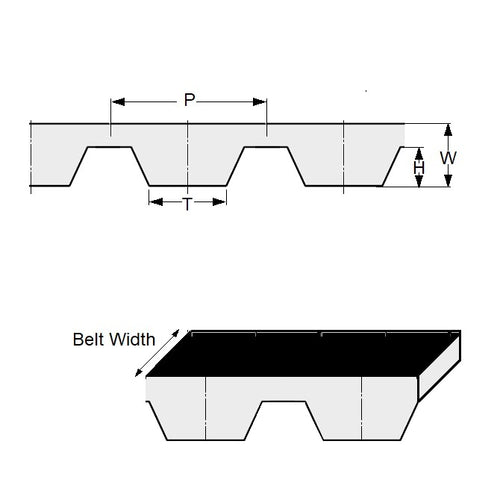

- Tooth Length (T) - 1.4mm
- Tooth Height (H) - 1.3mm
- Belt Height (W) - 2.3mm - Corner Radii ( r ) - 0.4mm
- Pitch (P) - 5.08mm (0.2 inch)
Product Data
- Number of Teeth : 120
- Length
609.6
mm
(Equiv. 24 in.) - Width
6.4
mm
(Equiv. 0.252 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 1003 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Tooth Angle (A) 50 °
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 240XL025
- 6484K134
- Gates BSE0240XL025
- Gates BXL01200060NF
- Misumi C-TBN240XL025
- A6R3M120060
- A6R3M120030
- A6R3120025
- A6R3-120025
- CTBN240XL025
