BTU0120-010-F-SS-HD - Datasheet
MBA
Category Information

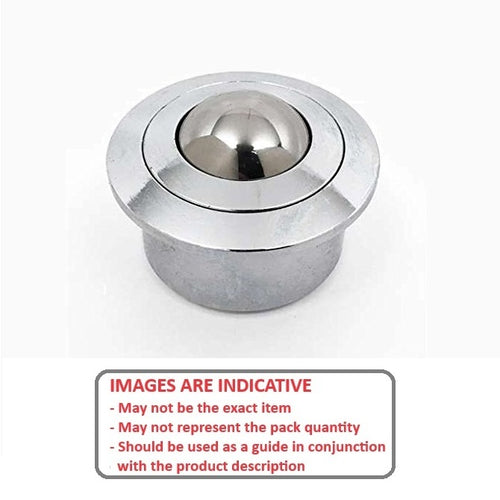

Ball Transfer Units - Flange Mount - Heavy Duty - Stainless SteelStainless Steel Heavy Duty Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 120 kg

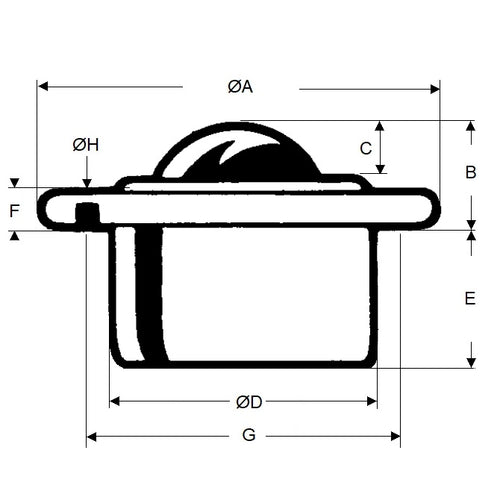

- Ball Height from Flange (B)
9.8
mm
(Equiv. 0.386 in.) - Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.) - Overall Height (L) 30.5 mm
- Ball Diameter 22.0 mm
- Body Height 20.7 mm
- Flange Diameter 45.0 mm
- Flange Thickness 3.0 mm
- Solid Steel Unit Type
- Material Stainless Steel AISI 420C and 303 Grades
Product Compliance and Data
Additional Resources
Cross References
- BTHD-22ASS
- BTHD22ASS
- SKF-2215
- SKF2215
