P45-12 - Datasheet
MBA
Category Information

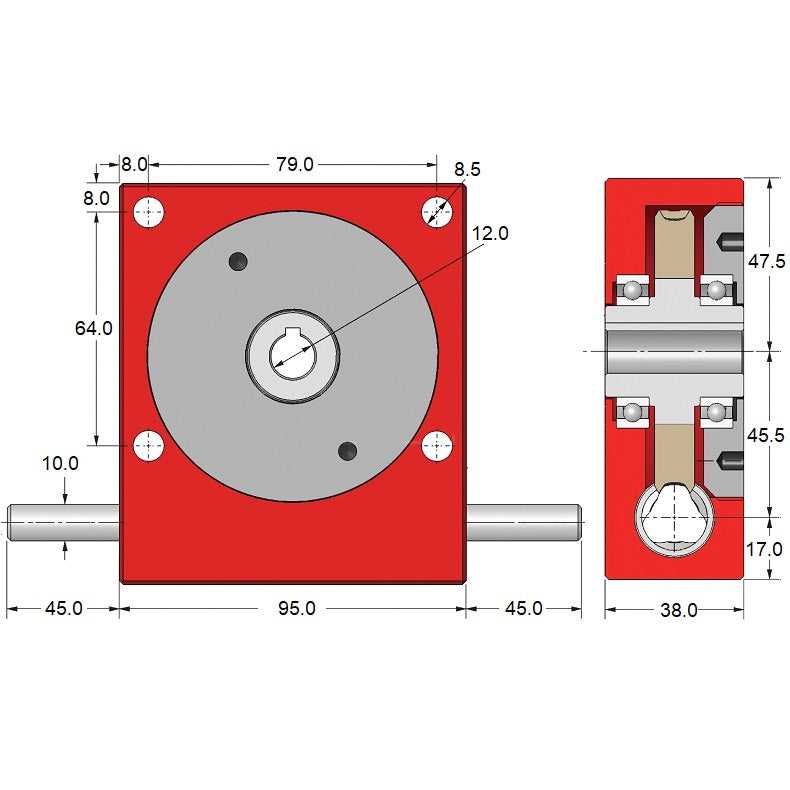

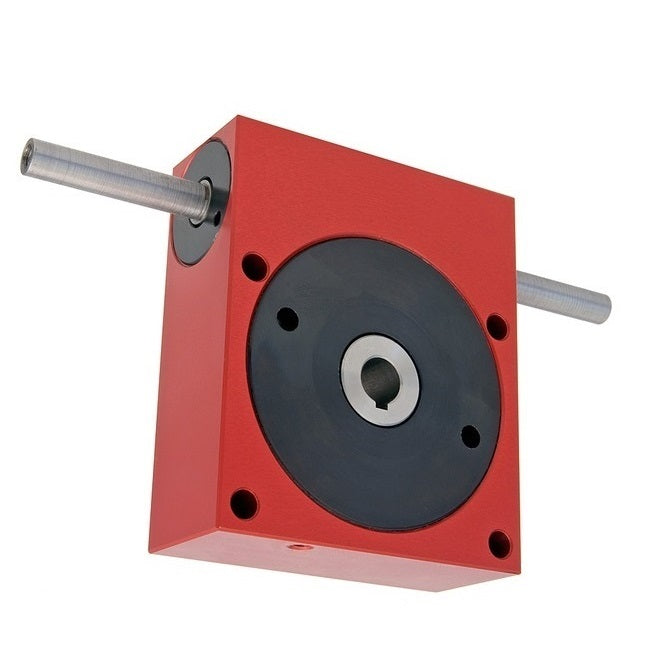

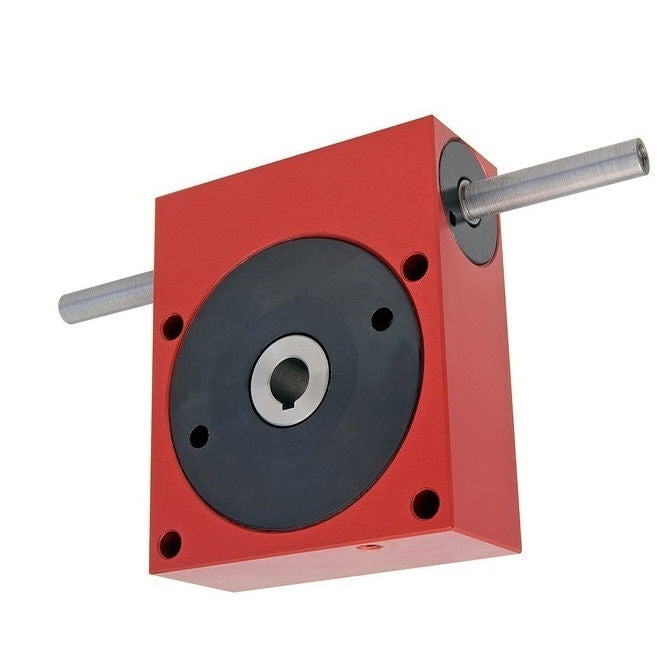

Gearboxes - Cross Axis - 110 x 95 x 38mm110 x 95 x 38mm Cross Axis Gearboxes. Worm and Wormwheel box. 10.3 to 40.0Nm. 5:1 to 120:1 ratios. P45 and PF45 Series.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Case: AA15 Red Anodised Aluminum (6082-T6).
- Worm: High Carbon Steel 817M40 (40CrNiMo6).
- Wheel: Quality Aluminium Bronze (CA104 / AB2).
- Threaded Bearing Caps: Mild Steel, chemically blackened (Blackodised).
- Fasteners: Steel (non-plated). Bearings : Steel.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Ratio : 12 to 1
- Helix Angle 21°20 min
- Number of Starts 5
- Max. Input Speed 3500 RPM
- Max. Output Speed 291 RPM
- Efficiency at 1000 RPM 89 Percent
- Input Type Shaft
- Output Type Bore
- Material Steel
