JLP-50RS - Datasheet
MBA
Category Information

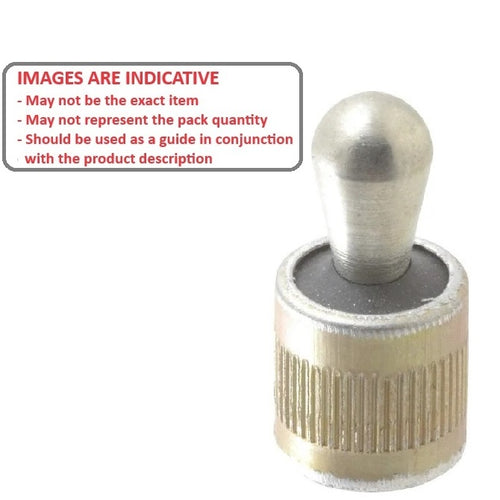

Pins - Locating Spring - Steel Pin - SealedSealed Steel Pin Locating Spring Pins. Aluminium Body. For fixturing small parts in tight areas. Ideal for positioning and chucking flat or round parts for profile clamping.

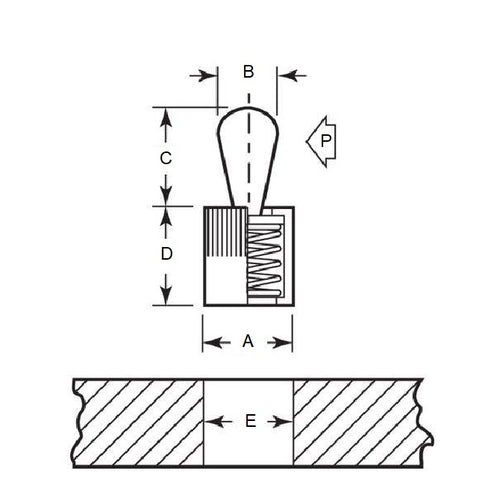

Product Data
- Diameter (A) : 12.70 mm
- Pin Diameter (B) 8.00 mm
- Pin Height (C) 13.00 mm
- D 14.00 mm
- E 12.70 mm + 0.025 / - 0.000
- P Force 5.08 Kg
- X 2.59 mm
- Installation Tool JLP-415
- Material Carbon Steel
