RP127-0889-Z - Datasheet
Brighton Best
Category Information

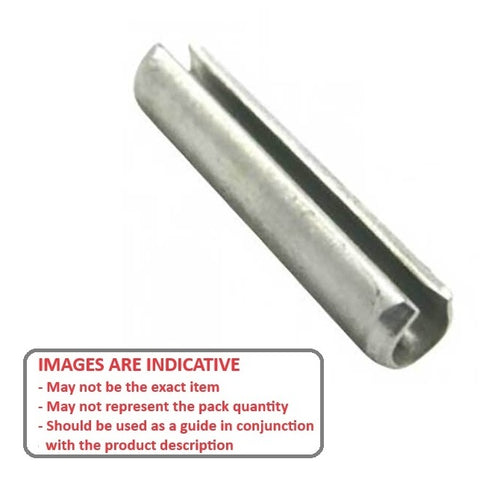

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
12.70
mm
(Equiv. 0.5 in.) - Length (L)
88.90
mm
(Equiv. 3.5 in.) - Free Diameter
13.97
mm
(Equiv. 0.55 in.) - Thickness (S) 2.39 mm
- Chamfer Length (cL) 0.64-2.79 mm
- Chamfer Diameter (cD) 12.3 mm
- Standard DIN1481 / ISO8752
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90692A676
- NoCor SP-500-3500
- Brighton Best V80253
- SP5003500
