Category Information

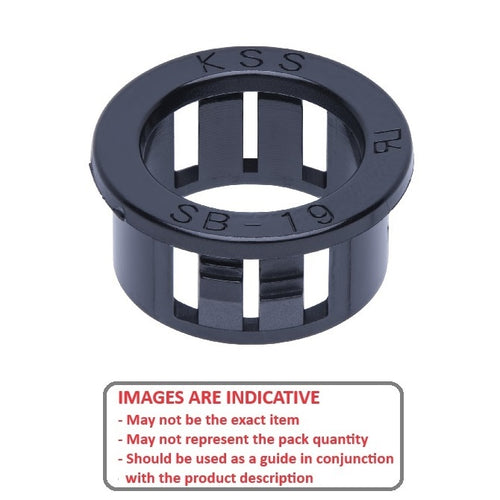

Bushings - Snap - OpenOpen Snap Bushings. Quality UL approved 6/6 nylon with flammabilty rating of 94V-2. Closed snap bushings are designed to keep out dust and other contaminants and protect from sharp edges where cable or hose used to run through a hole in plate steel.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Also called a dome plug.
- Also see grommets for a similar product made from rubber.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

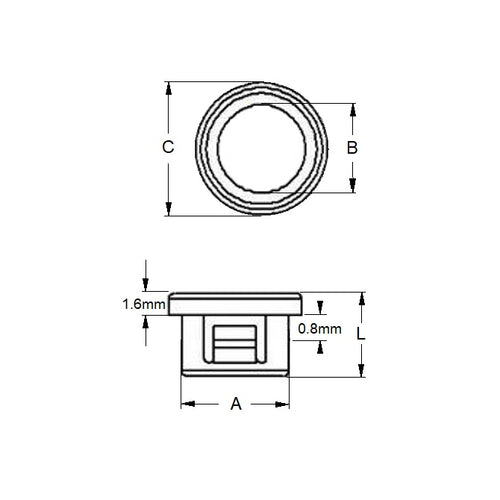

- Plate Hole Diameter (A)
:
12.7
mm
(Equiv. 0.5 in.) - Outside Diameter (C)
14.5
mm
(Equiv. 0.571 in.) - Length (L)
8.2
mm
(Equiv. 0.323 in.) - Quantity Per Card 5
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- KT KTSB13S
