BP0064-0127-0191-DT - Datasheet

MBA

Category Information

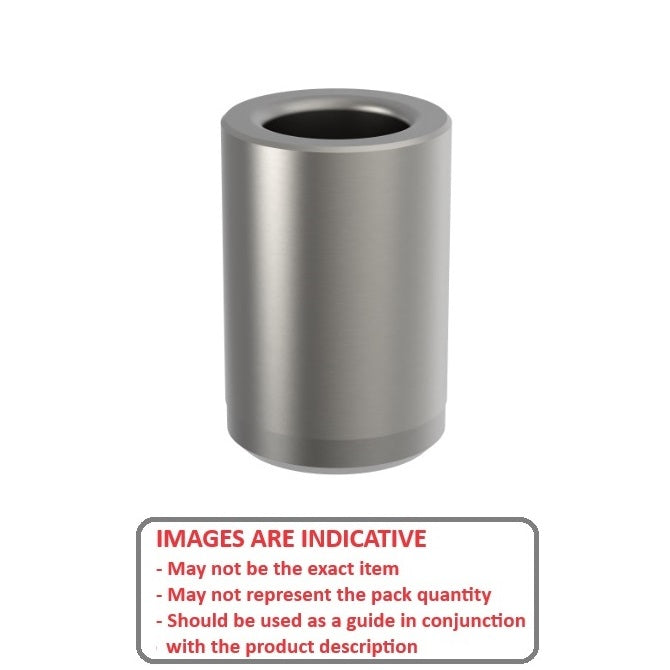

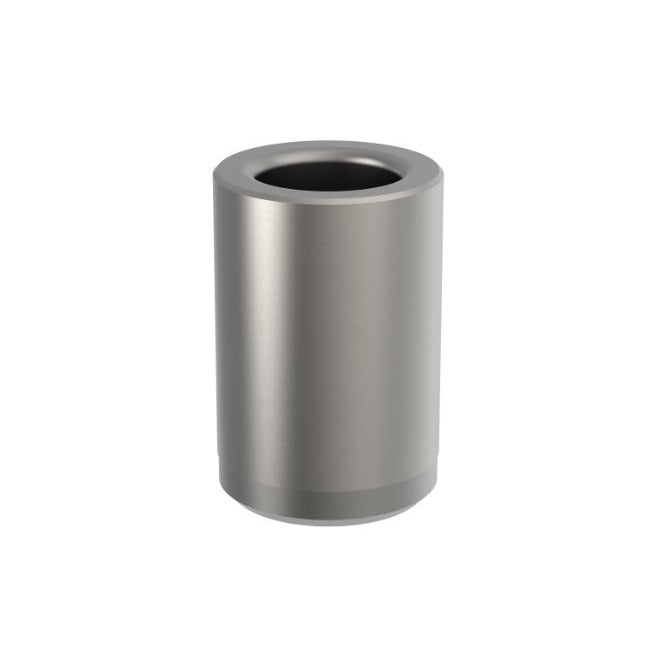

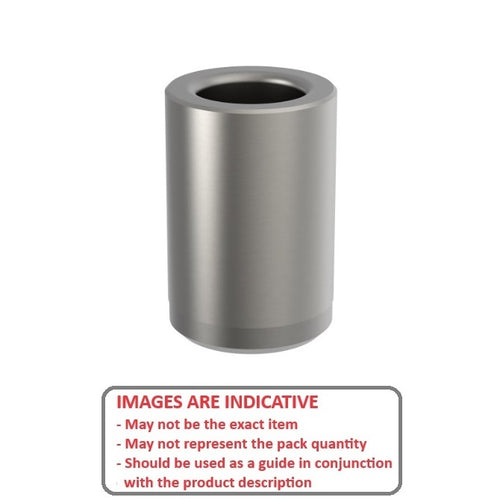

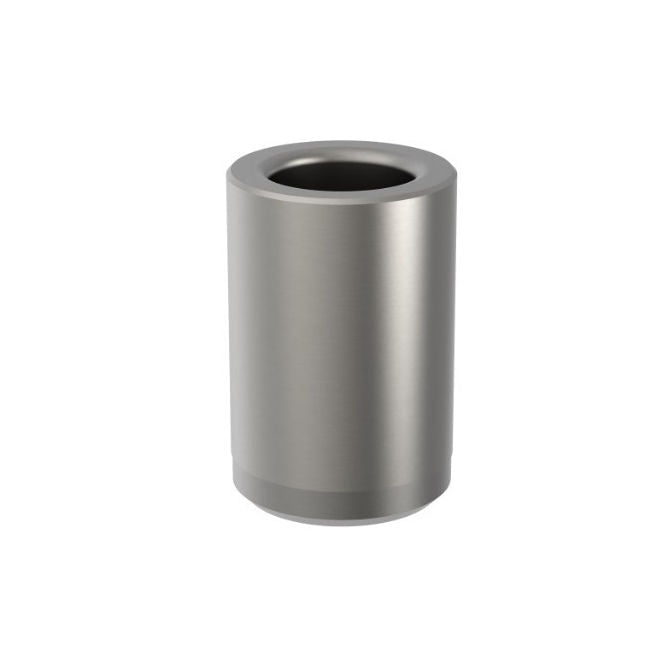

Bushings - Drill - Plain - Press Fit - Tungsten Carbide

Tungsten Carbide Press Fit Plain Drill Bushings. Unflanged press fit selection. Tungsten carbide.

  • Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
  • Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
  • Hardness: RC 67-69
  • Permanently pressed into the jig plate creating a precise location point. Used with fixed or slip renewable bushings.

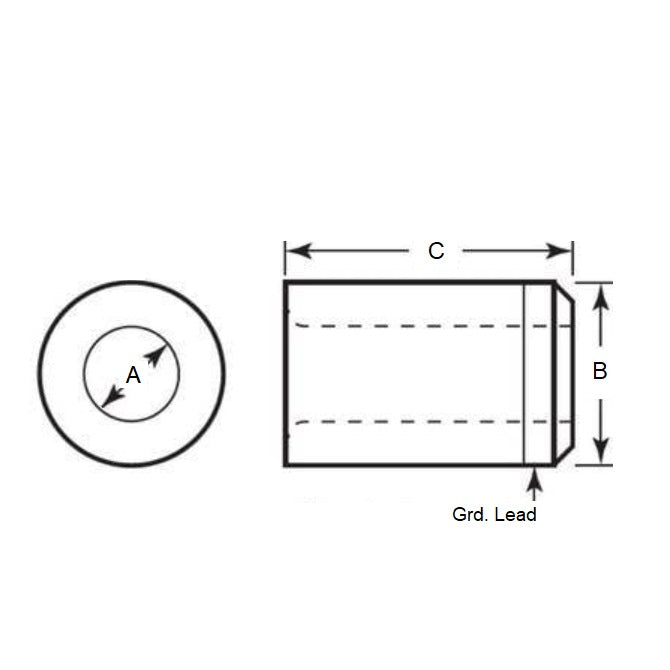

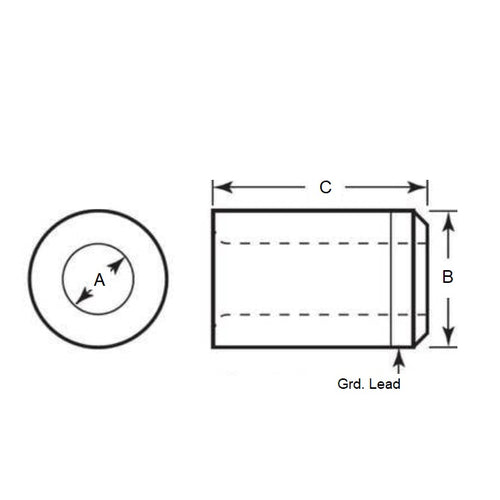

Product Data

  • Outside Diameter (OD) : 12.700 mm
    (Equiv. 0.5 in.)
  • Drill Size 6.350 mm
    (Equiv. 0.25 in.)
  • Length 19.050 mm
    (Equiv. 0.75 in.)
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • BTC-75
    • BTC75
