RP127-0572-Z - Datasheet
Brighton Best
Category Information

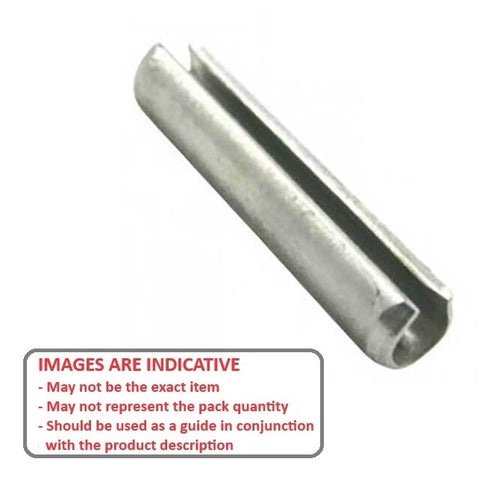

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 12.70 mm
- Length (L) 57.20 mm
- Free Diameter 13.97 mm
- Thickness (S) 2.39 mm
- Chamfer Length (cL) 0.64-2.79 mm
- Chamfer Diameter (cD) 12.3 mm
- Standard DIN1481 / ISO8752
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90692A664
- NoCor® SP-500-2252
- Brighton Best® V80248
- SP5002252
