BP0048-0127-0191-DT - Datasheet
MBA
Category Information

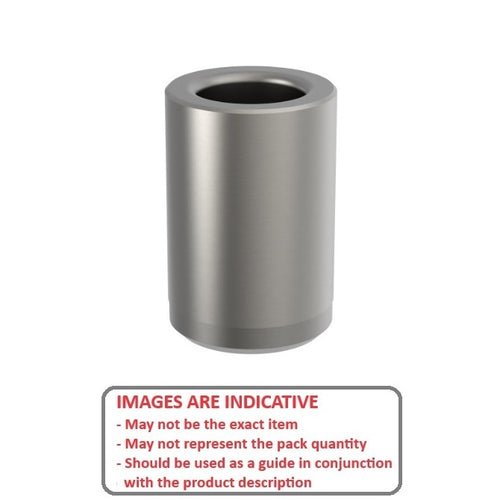

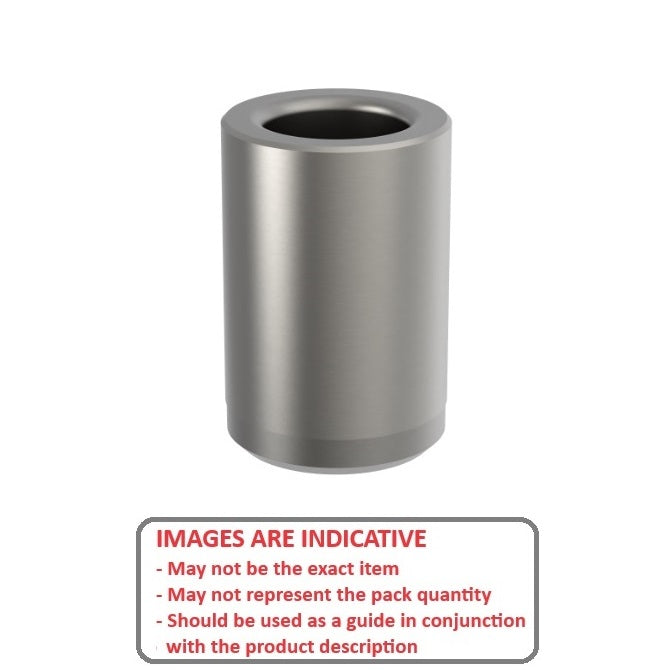

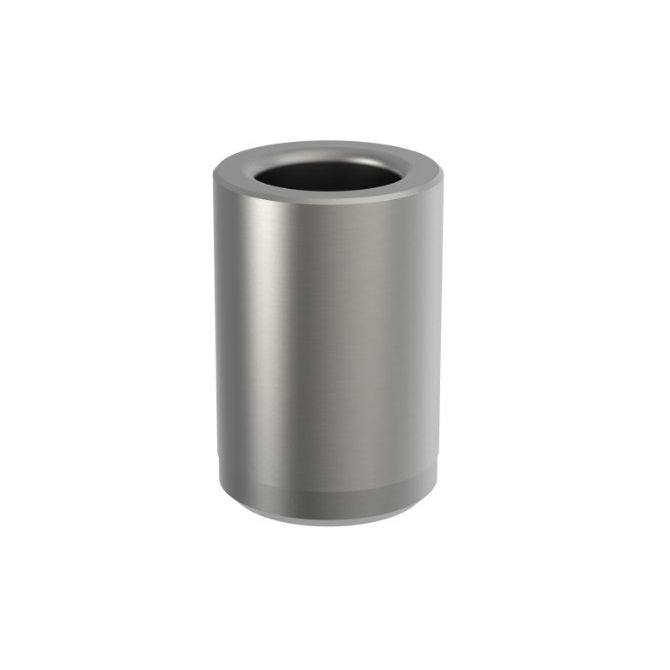

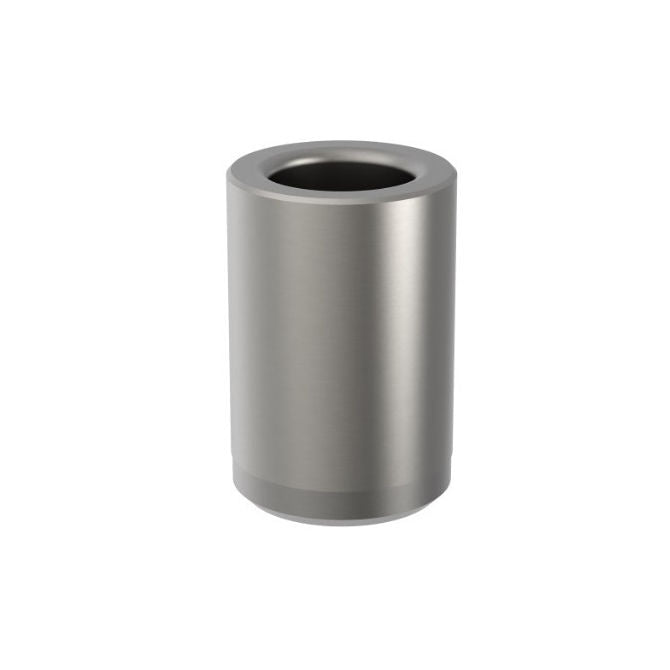

Bushings - Drill - Plain - Press Fit - Tungsten CarbideTungsten Carbide Press Fit Plain Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig.
- Used with fixed or slip renewable bushings.
- Permanently pressed into the jig plate creating a precise location point.
- Hardness: RC 67-69
Product Data

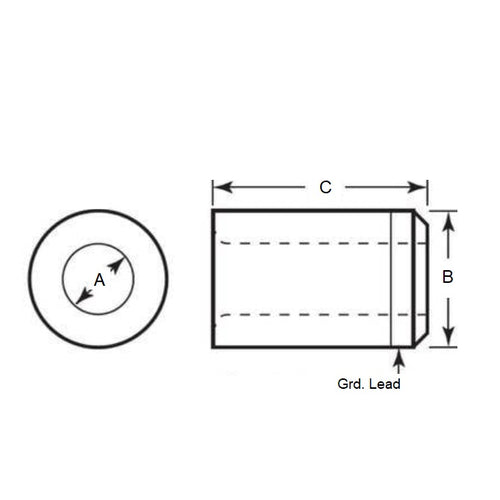

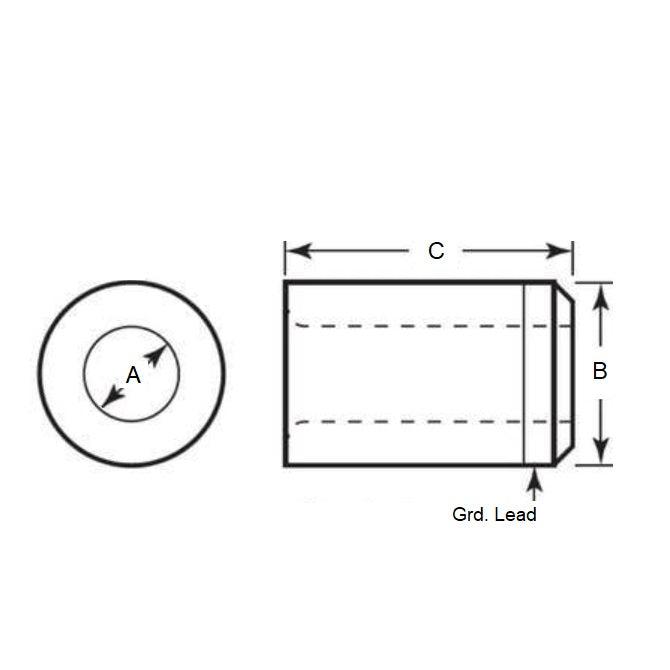

- Outside Diameter (OD)
:
12.700
mm
(Equiv. 0.5 in.) - Drill Size
4.763
mm
(Equiv. 0.188 in.) - Length
19.050
mm
(Equiv. 0.75 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- BTC50
- BTC-50
