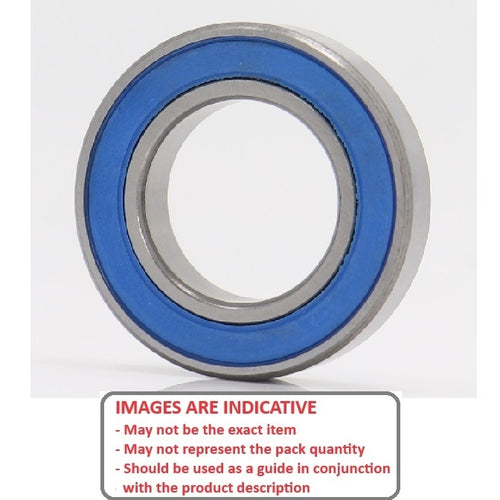

6202-16-2RB - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
12.700
mm
+ 0.000 / - 0.0075
(Equiv. 0.5 in.) - OD (D)
35.000
mm
+ 0.000 / - 0.011
(Equiv. 1.378 in.) - Width (B)
11.000
mm
+ 0.000 / - 0.125
(Equiv. 0.433 in.) - Precision Grade Abec 1
- Closure Type 2RB
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6202-16
- Limiting Speed 18000
- Cage Type Rivetted
- Static Load Rating KGf 406.6
- Dynamic Load Rating KGf 818.7
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance CN (3 to 18)
- Precision Grade Abec 1
- Closure Type 2RB
- Max Temperature 80 Deg. C
