W0127-SQ-035-064-C - Datasheet
MBA
Category Information

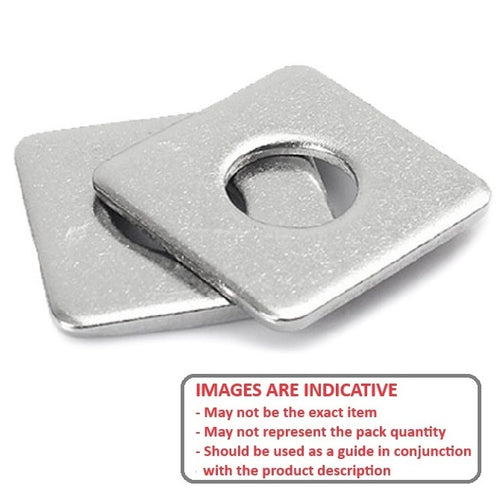

Washers - Square - Heavy Duty - SteelSteel Heavy Duty Square Washers. Zinc plated and carbon steel selection.
- Square washers are designed to distribute loads and prevent rotation when placed in a square recess or used with square neck screws.
- Often used in structural applications where greater stability and load distribution are needed than what a standard round washer provides.
Product Data

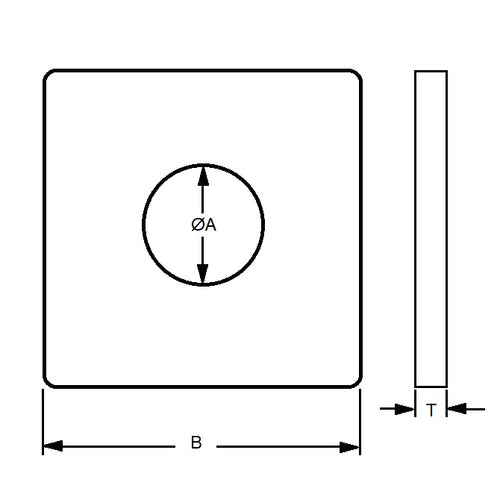

- Nominal Inside Diameter (A)
:
12.7
mm
(Equiv. 0.5 in.) - Outside Length (B)
34.925
mm
(Equiv. 1.375 in.) - Thickness
6.35
mm
(Equiv. 0.25 in.) - Actual ID (Ref) 13.494 mm
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- JSW-32
- JSW32
