R12216-2RS-NR-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.

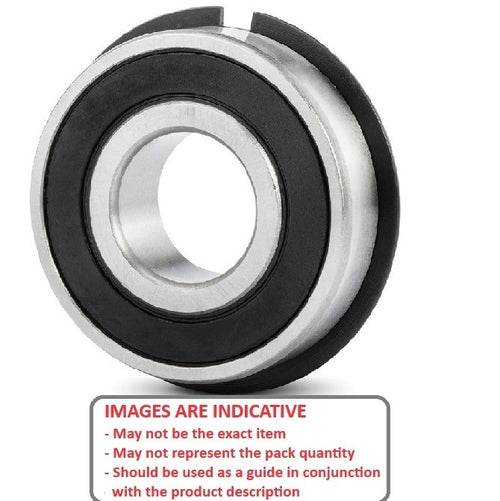

- Single row radial ball bearings with snap ring.
Product Data
This bearing has a snap ring on the OD
- ID (d)
:
12.700
mm
(Equiv. 0.5 in.) - OD (D)
34.925
mm
(Equiv. 1.375 in.) - Width (B)
11.112
mm
(Equiv. 0.437 in.) - Closure Type 2RS
- Bearing Type Radial with Snp Ring
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R12216
- Limiting Speed 7867
- Cage Type Standard
- Static Load Rating KGf 386.3
- Dynamic Load Rating KGf 777.8
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
