Miniature Bearings Australia
COH-01270-032-10-2P-CS - Datasheet
MBA
Category Information
Collars - Hex Bore - Two Piece - SteelSteel Two Piece Hex Bore Collars. This is the main category in this series

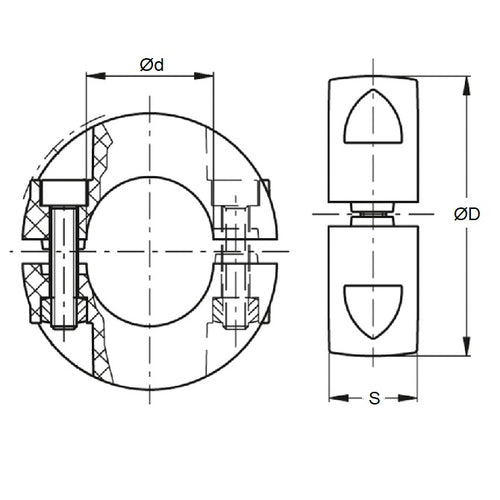

Product Data
- Suitable Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
31.80
mm
(Equiv. 1.252 in.) - Overall Width (S)
9.5
mm
(Equiv. 0.374 in.) - Screw Size 8-32 UNC (4.17mm)
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- CTC-553
- CTC553
