COH-01270-032-10-1P-CS - Datasheet
MBA
Category Information

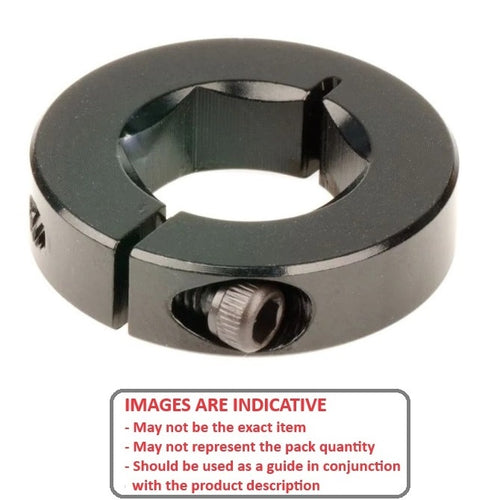

Collars - Hex Bore - One Piece - SteelSteel One Piece Hex Bore Collars. This is the main category in this series
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a hex shaped shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

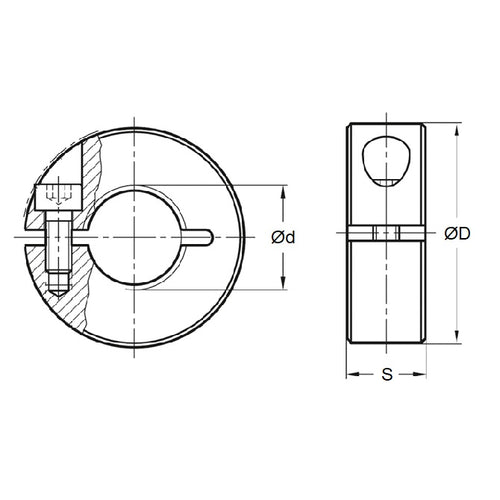

Product Data
- Suitable Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
31.80
mm
(Equiv. 1.252 in.) - Overall Width (S)
9.5
mm
(Equiv. 0.374 in.) - Screw Size 8-32 UNC (4.17mm)
- Material Steel - Mild
Product Compliance and Data
Additional Resources
Cross References
- CTC503
- CTC-503
