COH-01270-032-10-1P-S3 - Datasheet
MBA
Category Information

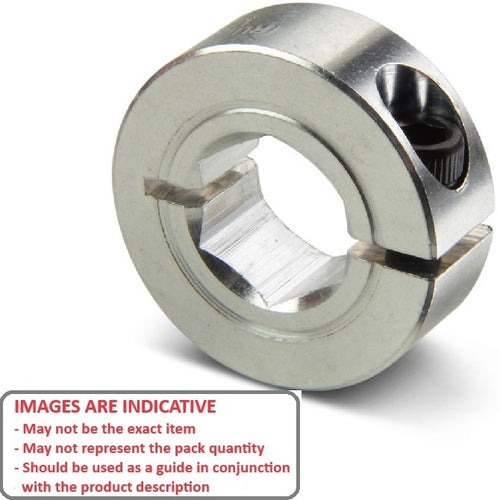

Collars - Hex Bore - One Piece - 303 Stainless Steel303 Stainless Steel One Piece Hex Bore Collars. This is the main category in this series
Product Data

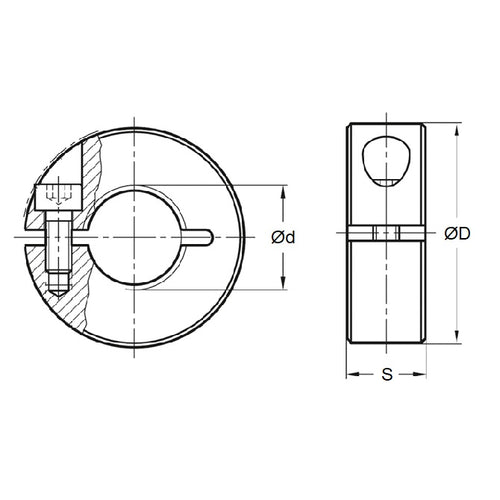

- Suitable Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
31.80
mm
(Equiv. 1.252 in.) - Overall Width (S)
9.5
mm
(Equiv. 0.374 in.) - Screw Size 8-32 UNC (4.17mm)
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- CTC603
- CTC-603
