CLP-127-0306-P - Datasheet
MBA
Category Information

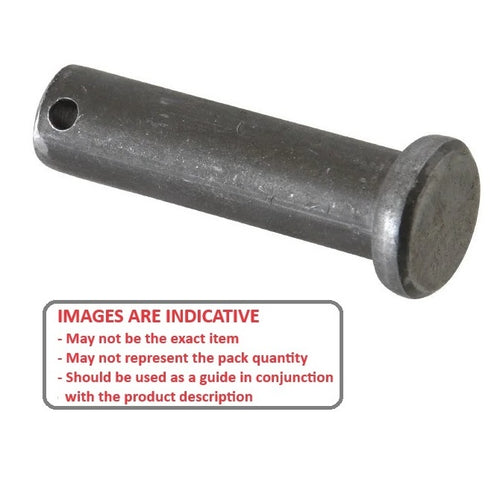

Pins - Clevis - Pin Locking - Low Carbon SteelLow Carbon Steel Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings
- In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
- Made from low carbon steel
Product Data
- Nominal Pin Diameter (D)
:
12.70
mm
- 0.10 / - 0.23
(Equiv. 0.5 in.) - Grip Length (EL)
30.56
mm
+ 0.51 / - 0.00
(Equiv. 1.203 in.) - Nom. Length (L)
34.52
mm
+ 0.51 / - 0.00
(Equiv. 1.359 in.) - Ret. Pin Dia. (M) 3.8 mm
- Material Carbon Steel - Low Carbon 1010 or 1018 Steel
Product Compliance and Data
Additional Resources
Cross References
- 98306A730
- YP-36
- YP36
