S316-DR-R8B - Datasheet
KMS
Category Information

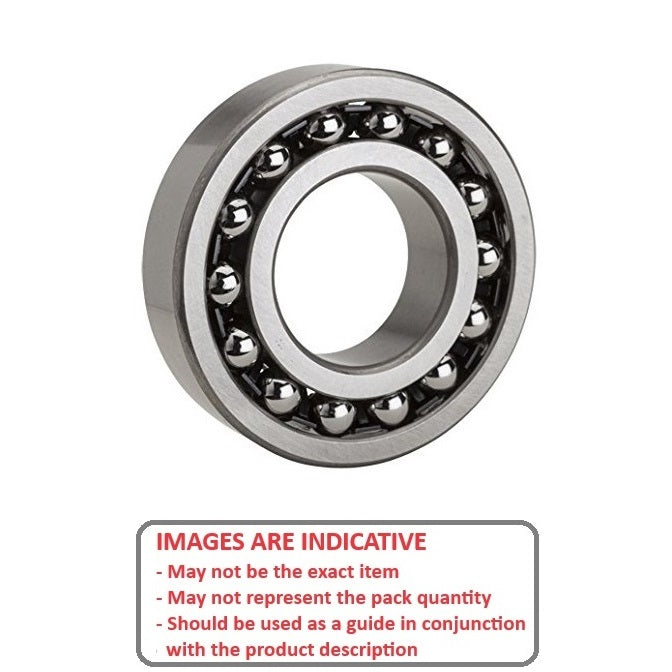

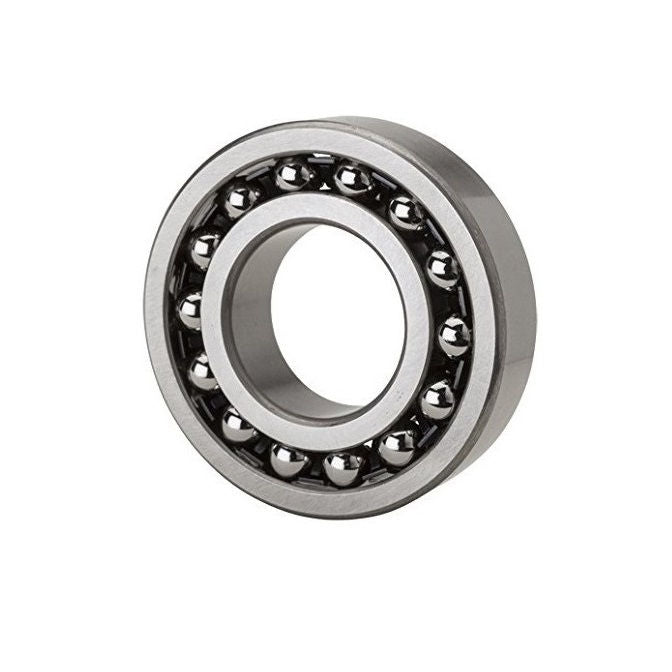

Bearings - Double Row Ball - Semi Precision - 316 Stainless Steel316 Stainless Steel Semi Precision Double Row Ball Bearings. Marine, food and medical grade Stainless Steel - Non Hardenable. Open, easier to lubricate. Water lubrication is ok.
- Double row ball bearings are generally wider than a single row bearing of equivalent ID and OD.
- The double row ball bearing accommodates much higher loads than a single row bearing.
- An expanded range may be available on special order. Please enquire.
- Tolerances differ from standard bearing types. Due to the tolerance range it is recommended that each actual bearing is measured to calculate fits.
- Polymer cages, grade 200 type 316 stainless balls, AISI 316 stainless races.
- Rings machined from solid rod stock producing true running concentric bearings.
- Low load, low speed applications requiring maximum corrosion resistance.
Product Data

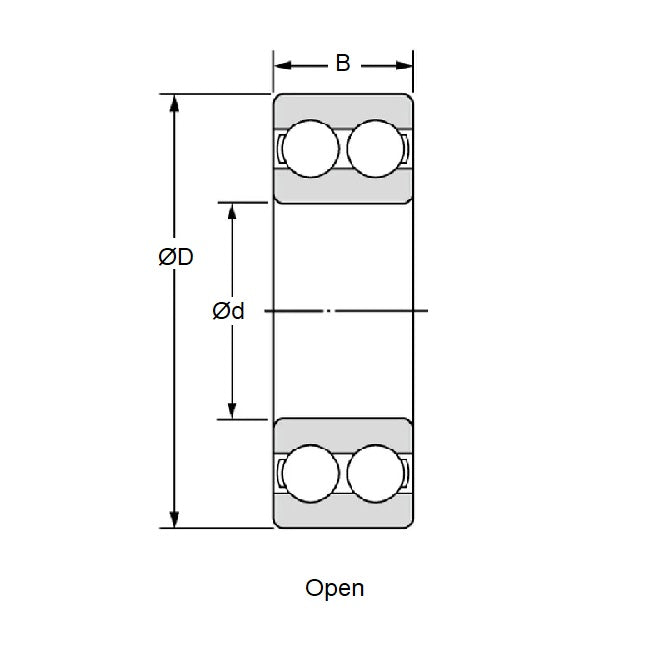

- ID (d)
:
12.700
mm
+ 0.076 / - 0.000
(Equiv. 0.5 in.) - OD (D)
28.575
mm
+ 0.000 / - 0.102
(Equiv. 1.125 in.) - Width (B)
11.113
mm
+ 0.127 / - 0.000
(Equiv. 0.438 in.) - Precision Grade Semi Precision
- Closure Type Open
- Bearing Type Double Row Radial
- Lubrication Unlubricated
- Material Stainless Steel 316 (Similar to A4, 18-10)
