COL-01270-025-11-C - Datasheet
MBA
Category Information

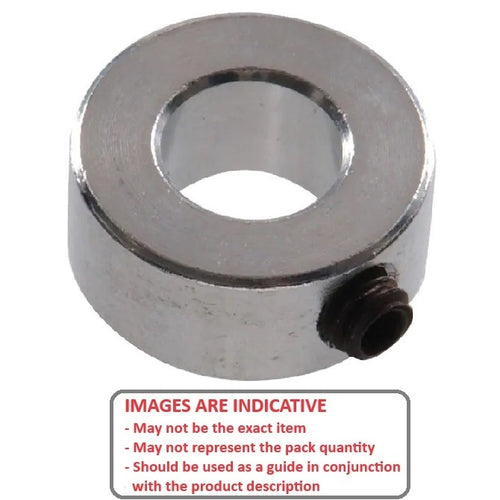

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (D)
25.40
mm
(Equiv. 1 in.) - Overall Width (S)
11.1
mm
(Equiv. 0.437 in.) - Material Steel - Plain
Product Compliance and Data
Additional Resources
Cross References
- NoCor SC-0500
- SC0500
