VT100RS - Datasheet
MBA
Category Information

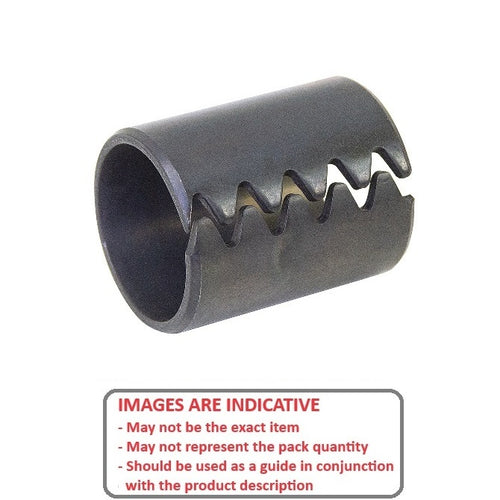

Bushings - TensionTension Bushings. Like a heavy duty roll pin.
- Made of a high carbon spring steel with high elasticity, resilience and wear characteristics.
- Designed to replace solid steel tubular and case hardened bushings because they are close tolerance, self-retaining and through hard.
- Insertion can be easily accomplished with a hammer and drift.
- Ideal for high load/low-speed operation in articulating or continuous applications.
Product Data

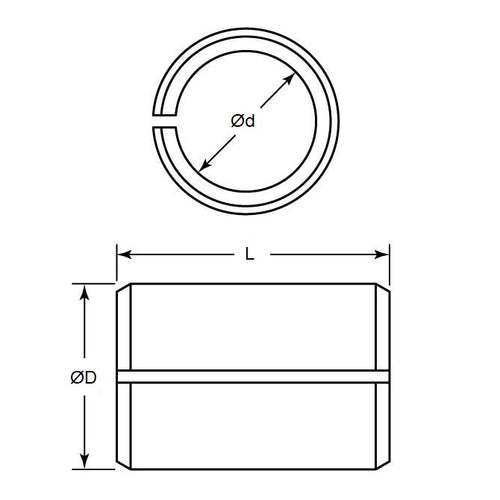

- Inside Diameter (ID)
:
12.700
mm
(Equiv. 0.5 in.) - Outside Diameter (OD)
19.050
mm
(Equiv. 0.75 in.) - Length (L)
19.050
mm
(Equiv. 0.75 in.) - ID after insertion 12.78 - 12.88 mm
- OD before insertion 19.56 - 20.07 mm
- Slot Style Straight
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- VT-100
- VT100
