W0127-F-019-0025-K-C - Datasheet
MBA
Category Information

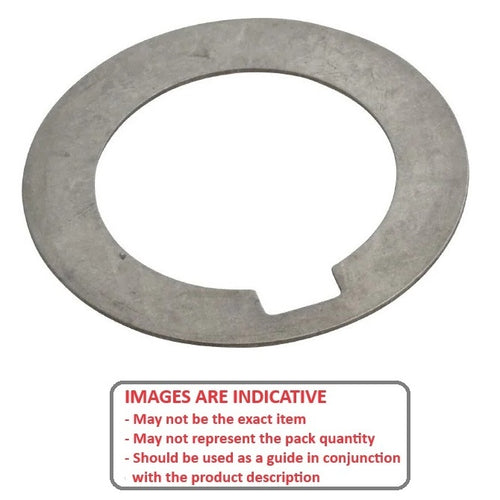

Spacers - ArborArbor Spacers. Flat arbor shim washers with keyway groove.
- Spacers with a notch or tab, fit snugly on keyed shafts to align and space gears, sprockets, and bearings.
- Often used to accurately space saw blades, cutters and other machinery.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

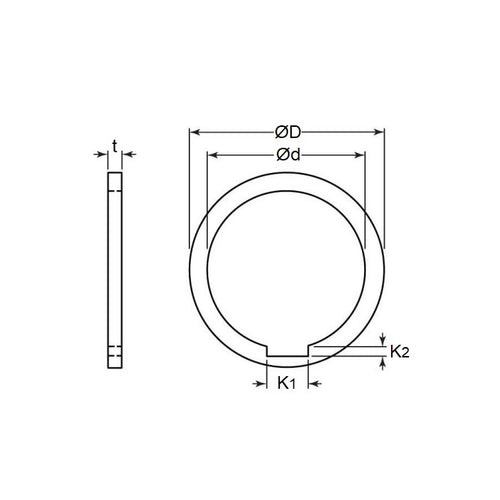

- ID (d)
:
12.700
mm
+ 0.152 / - 0.025
(Equiv. 0.5 in.) - OD (D)
19.050
mm
+ 0.000 / - 0.127
(Equiv. 0.75 in.) - Thickness / Length (T)
0.254
mm
+ /- 0.025
(Equiv. 0.01 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 3088A722
- PB-24130
- PB24130
- A 7C 8-D16010
- A7C8D16010
- A7C8-D16010
