W0127-F-016-0160-S3 - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Stainless Steel

Stainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • ID (d) : 12.70 mm + 0.1 / - 0.0
    (Equiv. 0.5 in.)
  • OD (D) 15.875 mm
    (Equiv. 0.625 in.)
  • Length (L) 1.6 mm + /- 0.05
    (Equiv. 0.063 in.)
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • A7X8C16063
  • A7X8-C16063
View full details

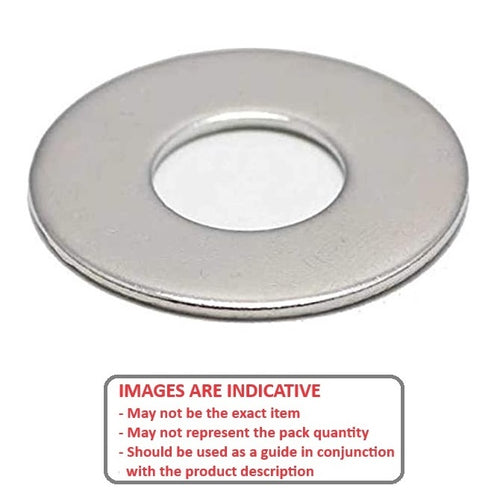

W0127-F-016-0160-S3DiagramW0127-F-016-0160-S3Image
