CCE-01270-CZT - Datasheet
MBA
Category Information

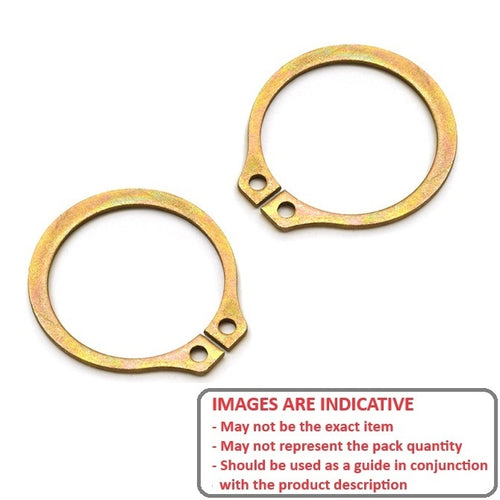

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
12.70
mm
(Equiv. 0.5 in.) - Clip Thickness (T)
0.89
mm
+/- 0.051
(Equiv. 0.035 in.) - Groove Dia. (Dg)
11.89
mm
+/- 0.051
(Equiv. 0.468 in.) - Approx. Loose Circlip ID (A) 11.71 mm
- Groove Width (W) 0.99 mm
- Clearance on Shaft (C1) 19.56 mm
- Clearance in Groove (C1) 18.80 mm
- Min. Lug Diameter (h) 1.14 mm
- Min. Extension (n) 1.30
- Standard MIL-16624
- Material Carbon Steel Zinc Plated Trivalent
Product Compliance and Data
Additional Resources
Cross References
- NoCor SH-050-Z3
- SH050Z3
