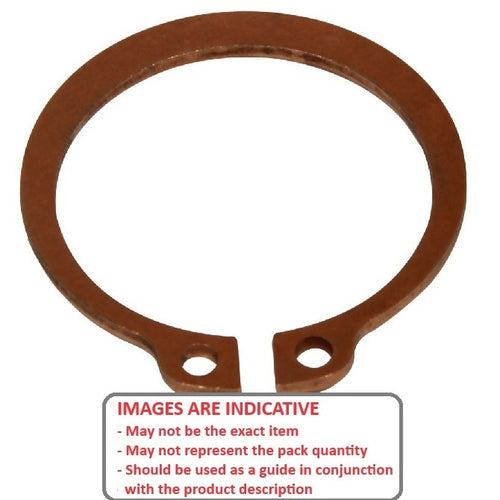

CCE-01270-B - Datasheet

MBA

Product Data

• Shaft Diameter (Ds) : 12.70 mm
  (Equiv. 0.5 in.)
• Clip Thickness (T) 0.89 mm _{+/- 0.051}
  (Equiv. 0.035 in.)
• Groove Dia. (Dg) 11.89 mm _{+/- 0.051}
  (Equiv. 0.468 in.)
• Approx. Loose Circlip ID (A) 11.71 mm
• Radial Wall (S) min/max B (Square Ends) mm
• Groove Width (W) 0.99 mm
• Clearance on Shaft (C1) 19.56 mm
• Clearance in Groove (C1) 18.80 mm
• Min. Lug Diameter (h) 1.14 mm
• Min. Extension (n) 1.30
• Standard MIL-16624
• Material Beryllium Copper

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Anderton and Seeger Cross Reference PDF

• Circlips PDF Catalogue

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• NoCor SH-050-BC
• SH050BC
• N1400-0050BC
• N14000050BC
