0T-0127-0111-0914-SS304 - Datasheet
MBA
Category Information

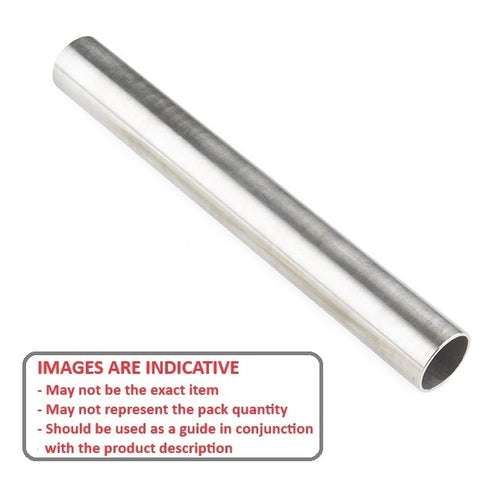

Tube - Round - Stainless SteelStainless Steel Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
Product Data
- OD (D)
:
12.70
mm
+/- 0.051
(Equiv. 0.5 in.) - ID (d)
11.11
mm
+/- 0.076
(Equiv. 0.437 in.) - Length (L)
914.4
mm
+/- 1.0
(Equiv. 36 in.) - Grade 304
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- KSE KS9623
- 0T012701130914SS304
