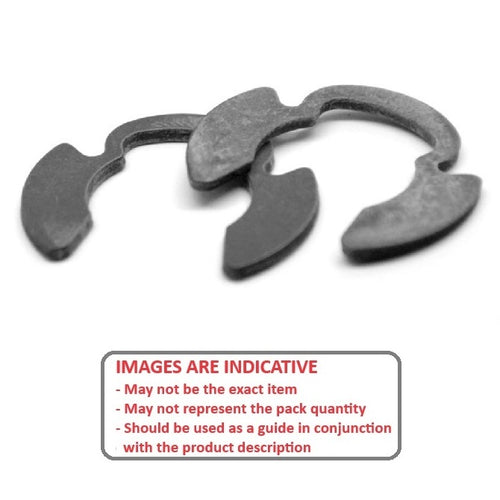

ECL-0112-0127-C-KR - Datasheet

MBA

Product Data

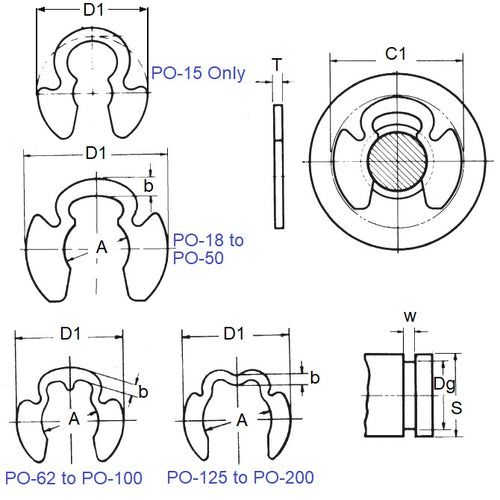

• Minimum Rec. Shaft Dia (S) : 12.70 mm _{+ 3.05 / - 0.00}
  (Equiv. 0.5 in.)
• Groove Dia. (Dg) 11.18 mm _{+/- 0.204}
  (Equiv. 0.44 in.)
• Clip Thickness (T) 1.27 mm _{+/ - 0.052}
  (Equiv. 0.05 in.)
• Clip OD Loose (D1) 20.98 mm
• Groove Width (W) 1.42 mm
• Maximum Rec. Shaft Dia (S) 15.75
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-050
• 98420A138
• NoCor PO-050
• Rotor Clip PO-050
• PO050
• 5304050
