ECL-0101-0127-S15 - Datasheet
MBA
Category Information

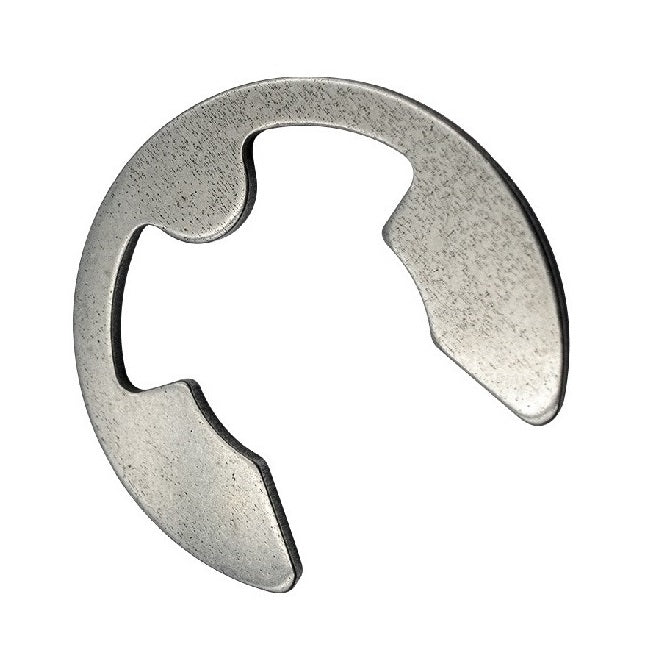

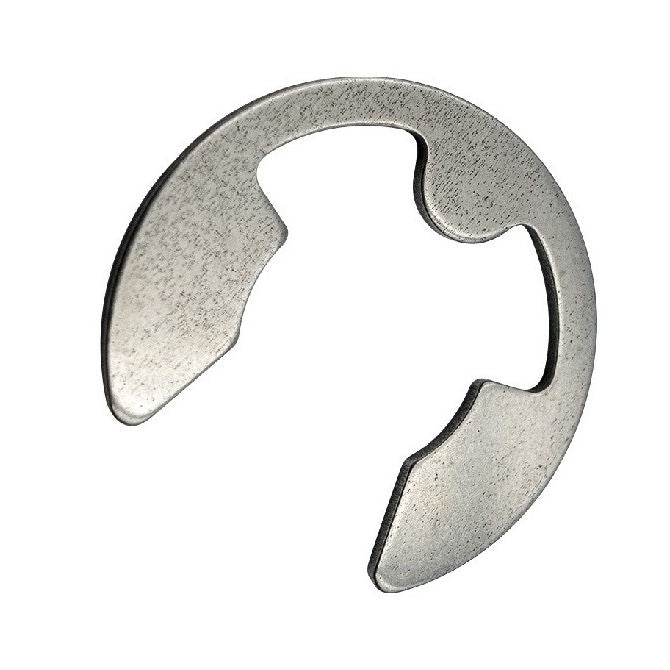

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
12.70
mm
+ 3.05 / - 0.00
(Equiv. 0.5 in.) - Groove Dia. (Dg)
10.06
mm
+ 0.076 / - 0.000
(Equiv. 0.396 in.) - Clip Thickness (T)
1.07
mm
+/ - 0.050
(Equiv. 0.042 in.) - Clip OD Loose (D1) 20.32 mm
- Groove Width (W) 1.17 mm
- Maximum Rec. Shaft Dia (S) 15.75
- Clip OD in groove (C1) 20.83 mm
- Loose Clip ID (A) 9.96 mm
- Min. Extension (n) 2.00
- Additional Info RRA-200 Applicator
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-050-SS
- 98408A138
- Ellison E-050-SS
- NoCor E-050-SS
- Rotorclip E-050-SS
- 5133050SS
- E050SS
- N1500050SS
- N15000050KSF
- N1500-0050KSF
- N1500-050-SS
