US-050-S02 - Datasheet
MBA
Category Information
Retaining Rings - External - Spiral Rings - Light Duty - Stainless SteelStainless Steel Light Duty Spiral Rings External Retaining Rings. Includes series CE / VS / US - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Light duty single turn rings used in low clearance applications.
- Also used as a positioning point for light loads.
- Radius notch on one end for removal.
- Narrow radial wall yields moderate thrust loads.
- Equivalent to Associated Spring: CE, Smalley: VS, Spirolox and Ramsey: US
Product Data

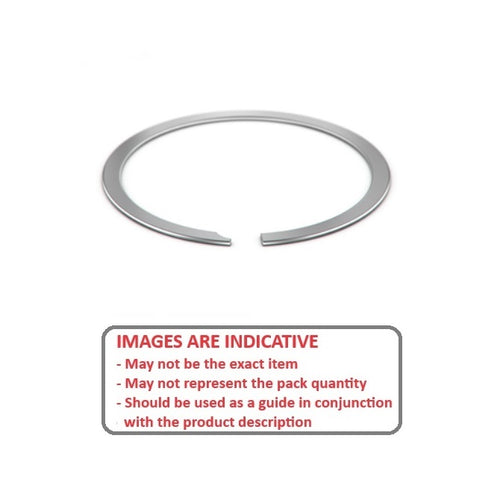

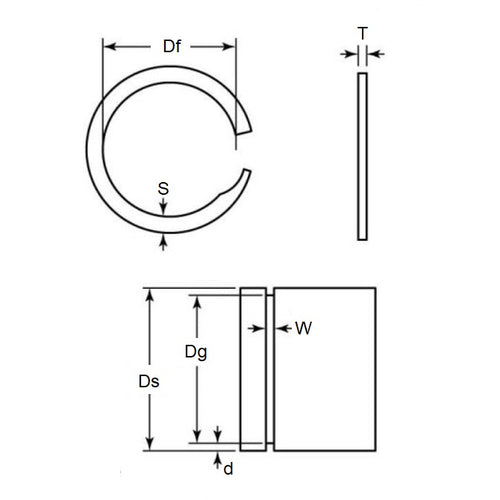

- Shaft Diameter (Ds)
:
12.70
mm
(Equiv. 0.5 in.) - Clip Thickness (T)
0.46
mm
+/- 0.04
(Equiv. 0.018 in.) - Groove Dia. (Dg)
11.99
mm
(Equiv. 0.472 in.) - Approx. Loose Circlip ID (A) 12.07 mm + 0.00 / - 0.33
- Radial Wall (S) min/max 1.14 mm +/- 0.10
- Groove Width (W) 0.59 mm +/- 0.05
- Approx. Loose Clip OD 14.35 +/- - 0.03
- Groove Depth (d) 0.36
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 93576A120
- NoCor VS-050-S02
- Smalley VS-050-S02
- VS050S02
