LCP-0127-022-032-CC - Datasheet
MBA
Category Information
Linear - Sliding Bearings - Ceramic CoatedCeramic Coated Sliding Bearings Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- Minimum shaft hardness RC35. Max PV 40,000. Temperature range -125 oC to +226 Deg C.. Max static PSI 5000.

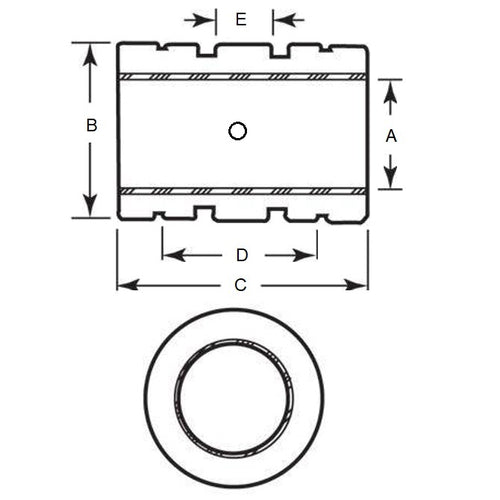

Product Data
- Nominal Shaft Size (T)
:
12.71
mm
(Equiv. 0.5 in.) - Nom. Outer Diameter (D)
22.23
mm
(Equiv. 0.875 in.) - Overall Length (L)
31.75
mm
(Equiv. 1.25 in.) - Max. Load 12911 N
- Groove Distance (D) 22.23 mm
- Type Closed
- Material Ceramic Coated Steel
Product Compliance and Data
