Miniature Bearings Australia
BL-01270-PTF - Datasheet
MBA
Category Information
Balls - Plastic - PTFEPTFE Plastic Balls. No water absorption. Temperatures up to 288 Deg C. Not affected by any known acids or alkalies.
- Plastic ball grades are not the same as those for precision balls
- Polytetrafluoroethylene
- Unpolished.
- Specific Gravity: 2.3.
Product Data

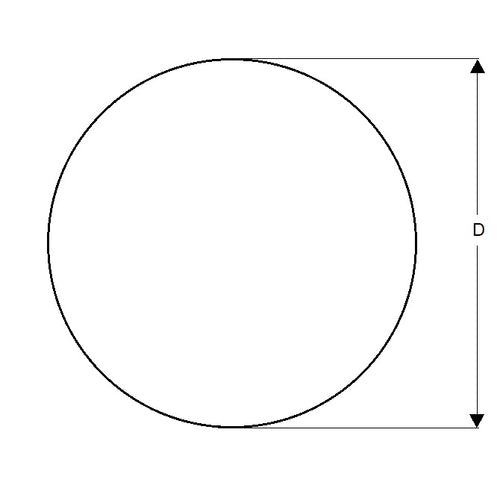

- Diameter (D)
:
12.70
mm
+/- 0.051
(Equiv. 0.5 in.) - Material PTFE
- Precision Grade 1
- Hardness 68 Rockwell R
- Properties No water absorption. Temperatures up to 288 Deg C.
- Colour White
- Specific Gravity 2.3
- Material PTFE
Product Compliance and Data
Additional Resources
Cross References
- 9660K24
- Small Parts BT-8
- BT8
