TR-127-141-050-S3 - Datasheet
MBA
Category Information
Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.

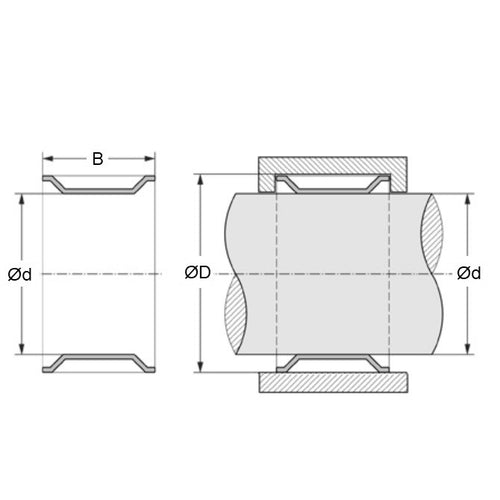

Product Data
- Inner Part OD (d)
:
12.700 to 12.695
mm
(Equiv. 0.5 in.) - Housing ID (D)
14.10 to 14.17
mm
(Equiv. 0.555 in.) - Ring Width (B)
5.00
mm
(Equiv. 0.197 in.) - Style For bearing OD
- Max. Radial Load 25 N
- To Suit OD of Bearing 12.7mm (R3, R3C)
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 3547K12
- TR1271410503
- TR1271340503
- S77RY1ML127X05
