CP-127K-127K-29-044-R1-3C - Datasheet
MBA
Category Information

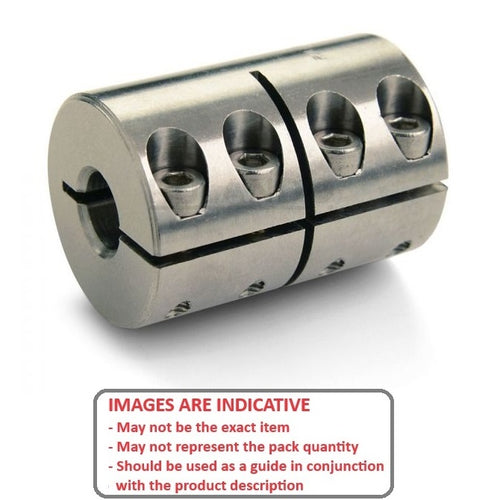

Couplings - Rigid - Clamp - 1 Piece - Stainless SteelStainless Steel 1 Piece Clamp Rigid Couplings. 303 Grade Stainless
- An expanded range may be available on special order. Please enquire.
- Precision Machined
- High torsional load
- Non marring, easy to install and adjust
- Use on hardened shafts, rigid clamp type design, easily machinable
- Available with stepped bores and keyways on 5 week delivery.
Product Data

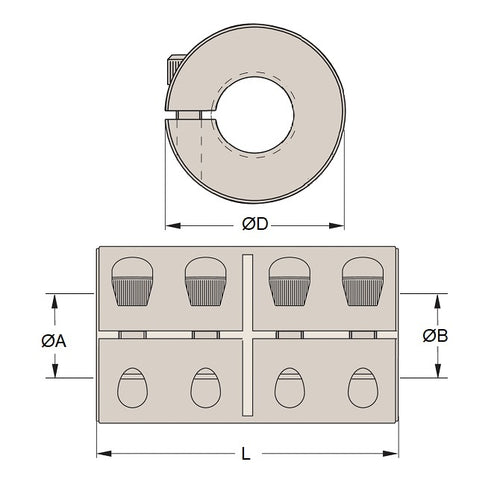

- Bore (b1)
:
12.700 (Keyed)
mm
(Equiv. 0.5 in.) - Bore (b2) Keyed 12.0 mm
- OD (D)
28.575
mm
(Equiv. 1.125 in.) - Length (L) 44.450 mm
- Features 3.175 Keyway
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 61005K221
- CC-605
- CC605
