CP-127K-127K-29-044-R1-SC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : 12.700 (Keyed) mm
    (Equiv. 0.5 in.)
  • Bore (b2) Keyed 12.0 mm
  • OD (D) 28.570 mm
    (Equiv. 1.125 in.)
  • Length (L) 44.450 mm
  • Features 3.175 Keyway
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 61005K122
    • CC105
    • CC-105
    View full details

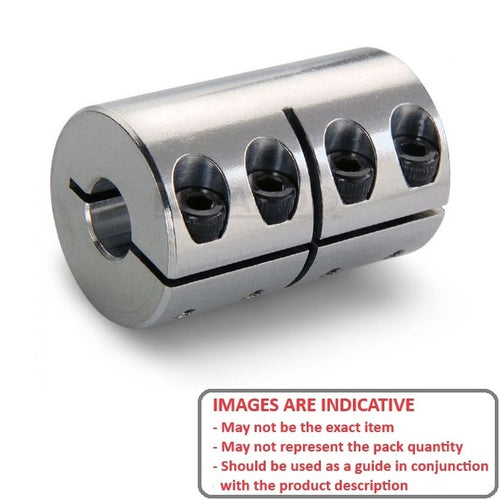

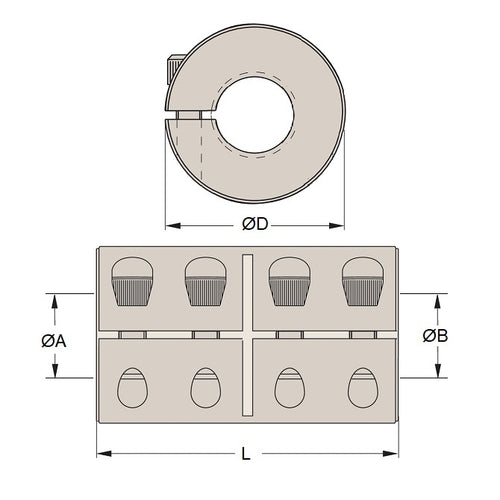

    CP-127K-127K-29-044-R1-SCDiagramCP-127K-127K-29-044-R1-SCImage
