0R-0127-0914-CP-T25 - Datasheet

MBA

Category Information

Shafting - Precision Ground - Chrome Plated

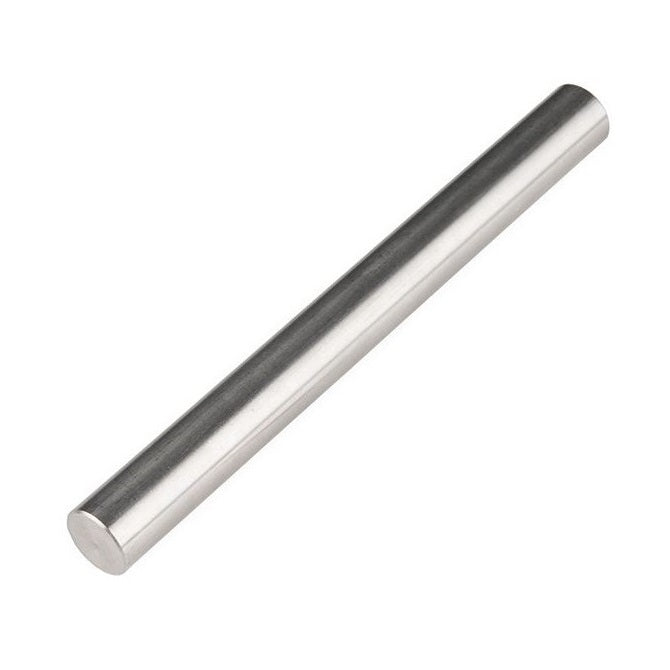

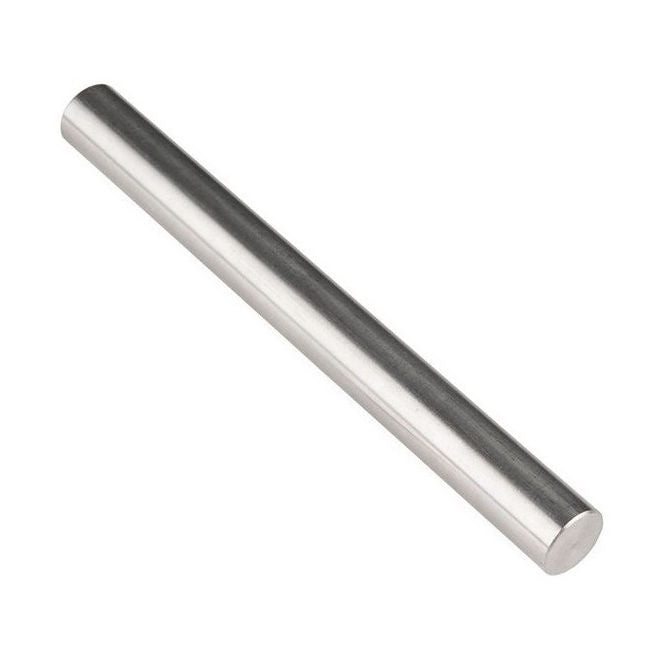

Chrome Plated Precision Ground Shafting. Precision ground shafting. AISI C1060 and chrome plated for corrosion resistance. Case hardened and recommended for use with precision bearings. Ends are not plated.

Case hardened to 60-65 Rockwell C
Chrome plated for corrosion resistance

Product Data

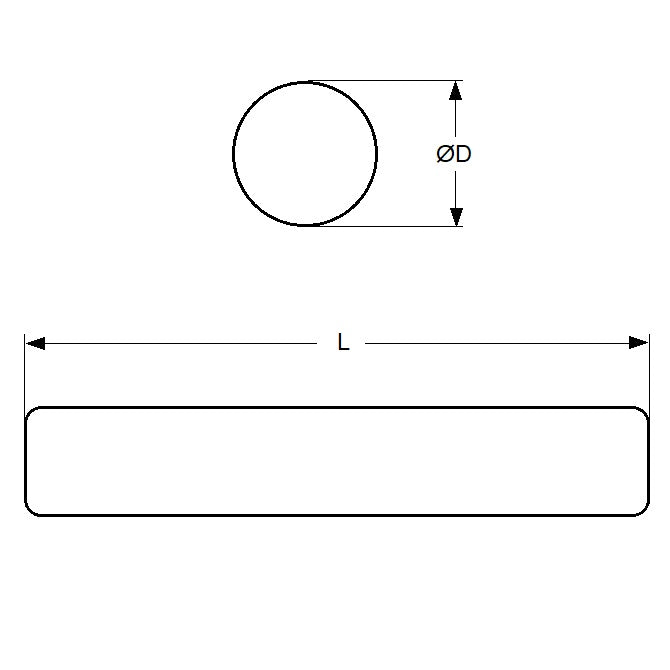

Diameter (d) : 12.700 mm _{- 0.013 / - 0.025}
(Equiv. 0.5 in.)
Length (L) 914.4 mm
(Equiv. 36 in.)
Material Chrome Plated Steel
Surface Finish 0.30 Microns
Hardness 60-65 Rockwell C
Ends Finished and Chamfered
Material Chrome Plated Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Drill Rod

Measuring Small Parts
Metalworking Resource Guide

Cross References

0R01270914CPT30
