REM-127-L-PP - Datasheet
MBA
Category Information

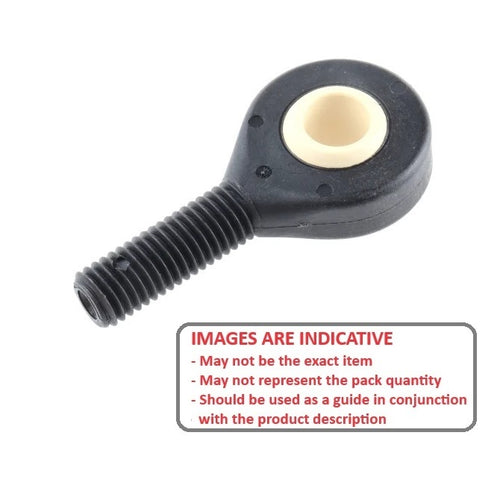

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
12.700
mm
(Equiv. 0.5 in.) - Overall Length (L)
78.59
mm
(Equiv. 3.094 in.) - Thread Size 1/2-20 UNF Left
- Min. Thread Length (l2) 38.10 mm
- Head Width (W) 11.51 mm
- Eye Width (W1) 15.88 mm
- Head Diameter (D) 33.32 mm
- Centre Height (l1) 61.67 mm
- Grease Nipple No
- Max Angle of Pivot 22 °
- Max Torque Strength 35.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K561-LEFT
- Igus KALI-08
- KALI08
- 1064K561LEFT
- S62GMR-050131L
- S62GMR050131L
