Category Information

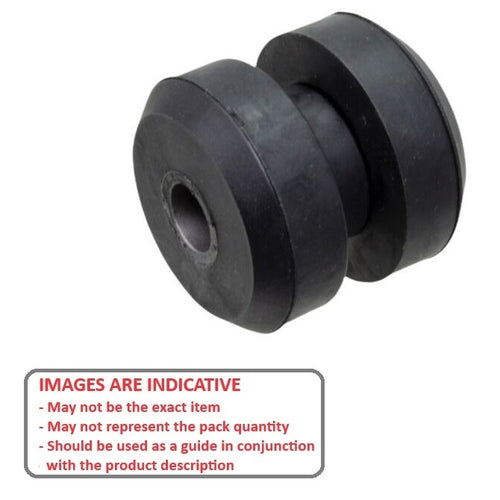

Mounts - Bonded - Tee Bush Two PieceTee Bush Two Piece Bonded Mounts. Steel insert overcoated with rubber joins the two pieces.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Load rating : 68 Kg

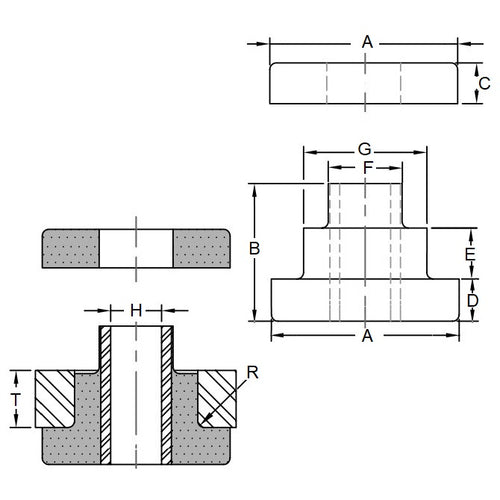

- Bolt Hole Dia
13.5
mm
(Equiv. 0.531 in.) - Flange Dia (A)
47.8
mm
(Equiv. 1.882 in.) - Main Flange Width (D) 19.8 mm
- Support Flange Width (C) 19.8 mm
- Main Part Length (B) 49.3 mm
- Shoulder Length (E) 12.7 mm
- Insert Dia. (F) 21.1 mm
- Shoulder Dia. (G) 33.0 mm
- R 1.5 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- 6309K34
- VM-190-3
- VM1903
