LVL-5RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

    Product Data

    • Diameter (A) : 12.700 mm
      (Equiv. 0.5 in.)
    • Height (B) 12.700 mm
      (Equiv. 0.5 in.)
    • Thread 6-32 UNC (3.5mm)
    • Thread Length 6.350 mm
    • End Flat
    • Durometer 70A
    • Colour Black
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

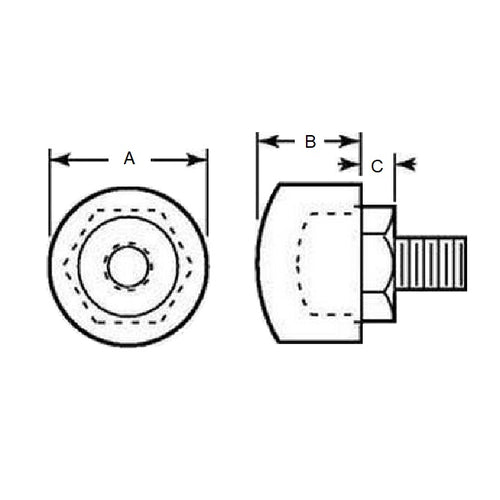

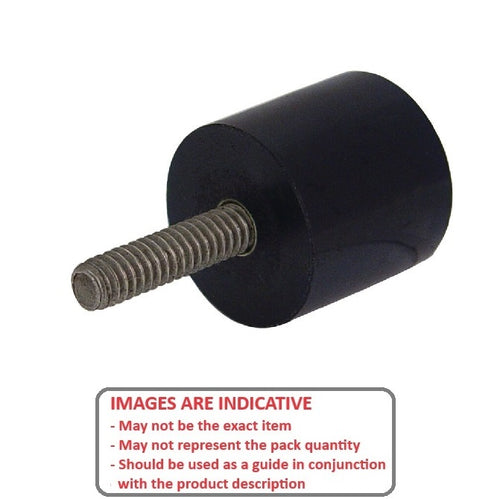

      LVL-5RSDiagramLVL-5RSImage
