KF127-035-LVR - Datasheet
MBA
Category Information

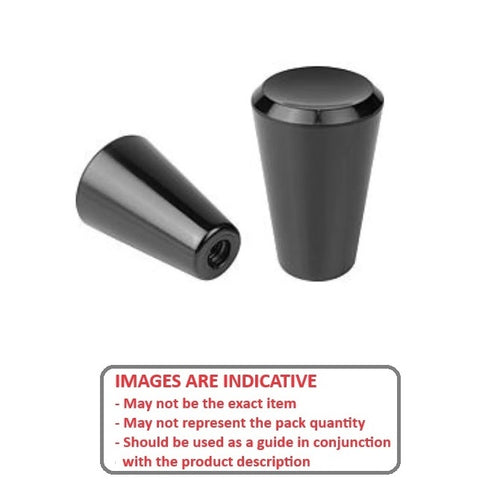

Knobs - Lever - Unthreaded BoreUnthreaded Bore Lever Knobs. Lever knobs with moulded female threads, ideal for direct attachment to operating levers.
- Plastic (high grade gloss black phenolic) with Steel insert.
- Temperature Range: -30oC to +140oC.
- All knobs are fitted with a brass female insert.

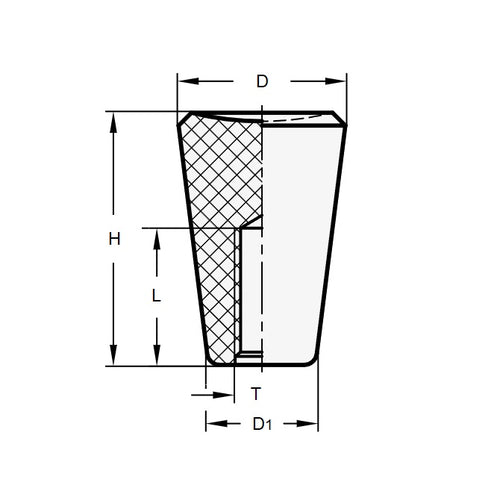

Product Data
- Hole Size : 12.70 Push On
- Major Diameter 34.93 mm
- Bore Length 19.1 mm
- Height 41.3 mm
- Material Phenolic
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® POK-125
- POK125
