ACE1227MRS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 12.7 mm
    • Thread (T) M20x1.5
    • Length (A/F) 96.80 / 72.10 mm
    • Shaft Diameter (D) 6.30 mm
    • Effective Weight 181.44 - 907.18 KG
    • Wrench Flat (EE) 8.00 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-1227M
      • ACE1227M
      View full details

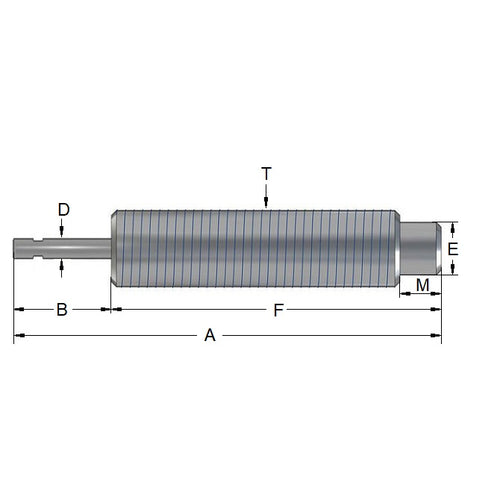

      ACE1227MRSDiagramACE1227MRSImage
