Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

ACE0150MRS - Datasheet

ACE

Category Information

Shock Absorbers - Adjustable - Standard

Standard Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 12.7 mm
      (Equiv. 0.5 in.)
    • Thread (T) M14x1.5 (14.0mm)
    • Length (A/F) 91.19 / 61.98 mm
      (Equiv. 3.59 in.)
    • Shaft Diameter (D) 4.83 mm
    • Effective Weight 1 - 109 KG
    • Wrench Flat (EE) 12.70 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE0150M
      • ACE-0150M
      View full details

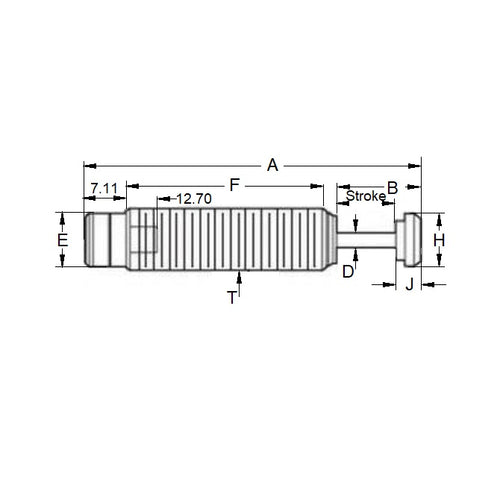

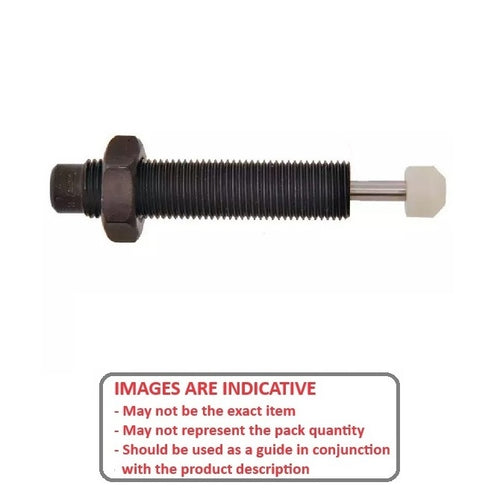

      ACE0150MRSDiagramACE0150MRSImage
