LCHP-0127-032-CC - Datasheet
MBA
Category Information

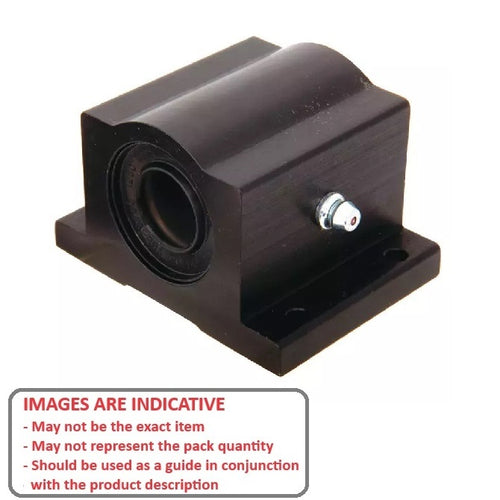

Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.

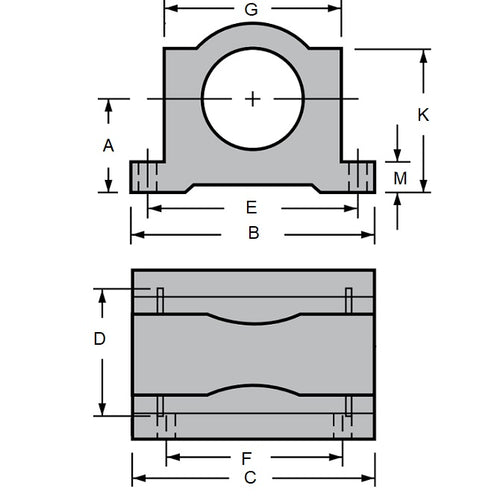

Product Data
- Nominal Diameter
:
12.70
mm
(Equiv. 0.5 in.) - Widths (B x C)
50.80 x 42.86
mm
(Equiv. 2 in.) - Length (D)
31.75
mm
(Equiv. 1.25 in.) - Bolt Distances (E x F) 42.88 x 25.40 mm
- Bolt Hole Size 3.97 mm
- Height (K) 28.58 mm
- Centre Height (A) 17.45 mm
- G 34.93 mm
- M 6.35 mm
- Max Static Load Capacity 1418.84 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K13
- LMB310
- LMB-310
