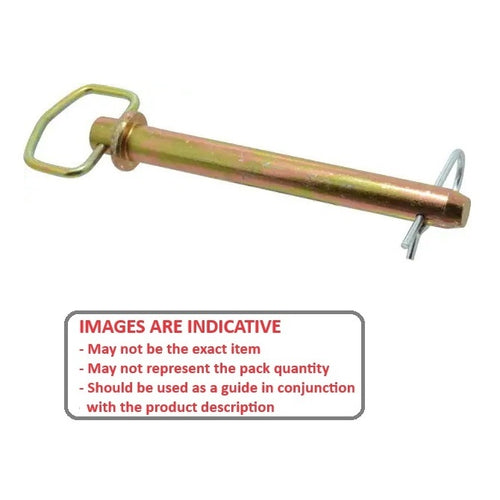

CLP-127-1016-CZ-H - Datasheet

MBA

Product Data

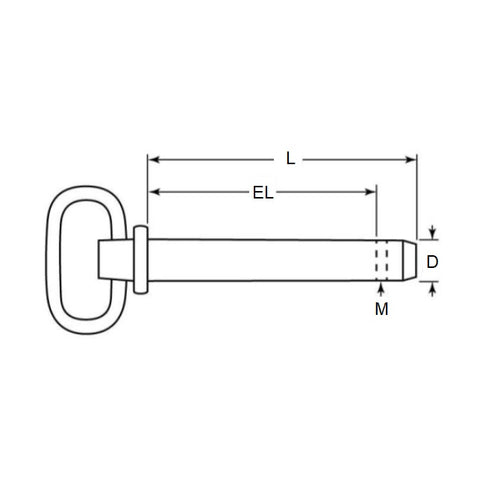

• Nominal Pin Diameter (D) : 12.70 mm _{- 0.10 / - 0.23}
  (Equiv. 0.5 in.)
• Grip Length (EL) 101.60 mm _{+ 0.51 / - 0.00}
  (Equiv. 4 in.)
• Pin Finish Zinc Plated
• 3.8
• Handle Finish RCL-032-065-Z
• Handle Material Heat treated Steel
• Material Carbon Steel Heat Treated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF

• R-Clips

• Split Pins


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• CLP551
• CLP-551
• CLP1271016ZH
