ACE1152MRS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 12.7 mm
      (Equiv. 0.5 in.)
    • Thread (T) M14x1.5
    • Length (A/F) 86.60 / 62.00 mm
      (Equiv. 3.409 in.)
    • Shaft Diameter (D) 4.80 mm
    • Effective Weight 68.04 - 204.12 KG
    • Wrench Flat (EE) 6.40 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • ACE1152M
    • ACE-1152M
    View full details

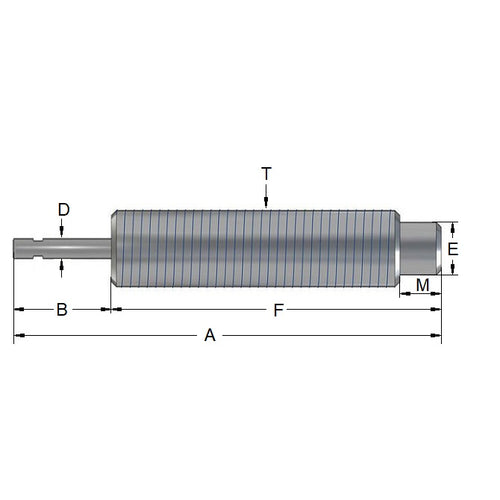

    ACE1152MRSDiagramACE1152MRSImage
