ACE1225RS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

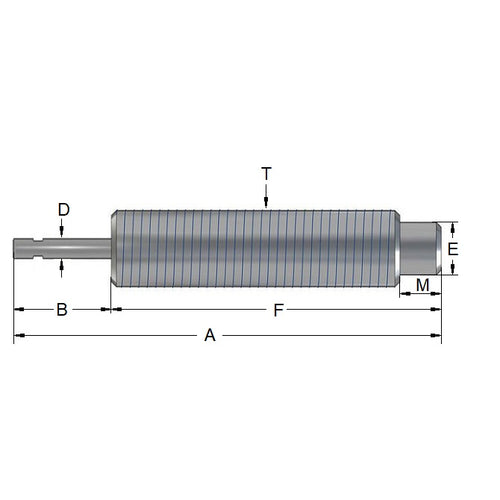

    • Stroke : 12.7 mm
      (Equiv. 0.5 in.)
    • Thread (T) 9/16-18
    • Length (A/F) 96.77 / 72.14 mm
      (Equiv. 3.81 in.)
    • Shaft Diameter (D) 6.35 mm
    • Effective Weight 2.27 - 24.95 KG
    • Wrench Flat (EE) 16.05 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE1225
      • ACE-1225
