ACE1151RS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 12.7 mm
      (Equiv. 0.5 in.)
    • Thread (T) 9/16-18
    • Length (A/F) 86.61 / 61.98 mm
      (Equiv. 3.41 in.)
    • Shaft Diameter (D) 4.83 mm
    • Effective Weight 9.07 - 9.07 KG
    • Wrench Flat (EE) 13.34 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE1151
      • ACE-1151
      View full details

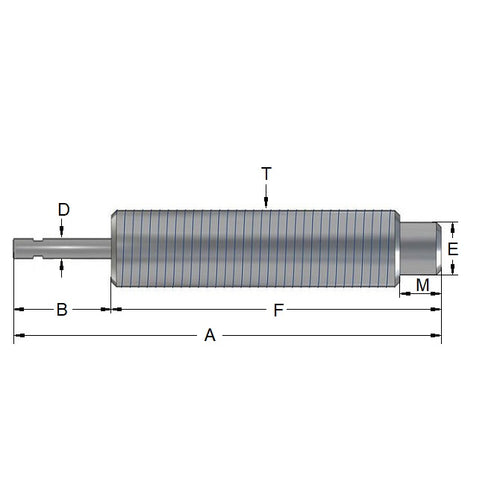

      ACE1151RSDiagramACE1151RSImage
