Miniature Bearings Australia
REM-127-L-CN - Datasheet
MBA
Category Information

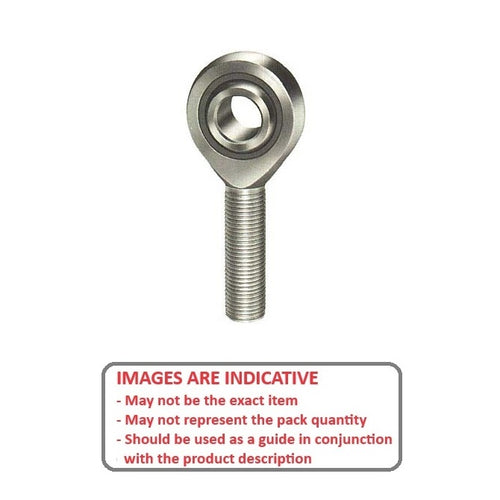

Rod Ends - Male - Steel - Nylon RacewayNylon Raceway Steel Male Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
12.7
mm
(Equiv. 0.5 in.) - Overall Length (L)
78.59
mm
(Equiv. 3.094 in.) - Thread Size 1/2-20 UNF Left
- Min. Thread Length (l2) 38.10 mm
- Head Width (W) 12.70 mm
- Eye Width (W1) 15.88 mm
- Head Diameter (D) 33.33 mm
- Centre Height (l1) 61.90 mm
- Material Steel with Nylon Raceway
Product Compliance and Data
Additional Resources
Cross References
- SPML8
- SPML-8
